400KG 800KG 1200KG DC Battery Power Vacuum Lift Glass Vacuum Suction Cups for Sale

400KG 800KG 1200KG DC Battery Power Vacuum Lift Glass Vacuum Suction Cups for Sale

Load capacity

400/600/800/1000/1200kg

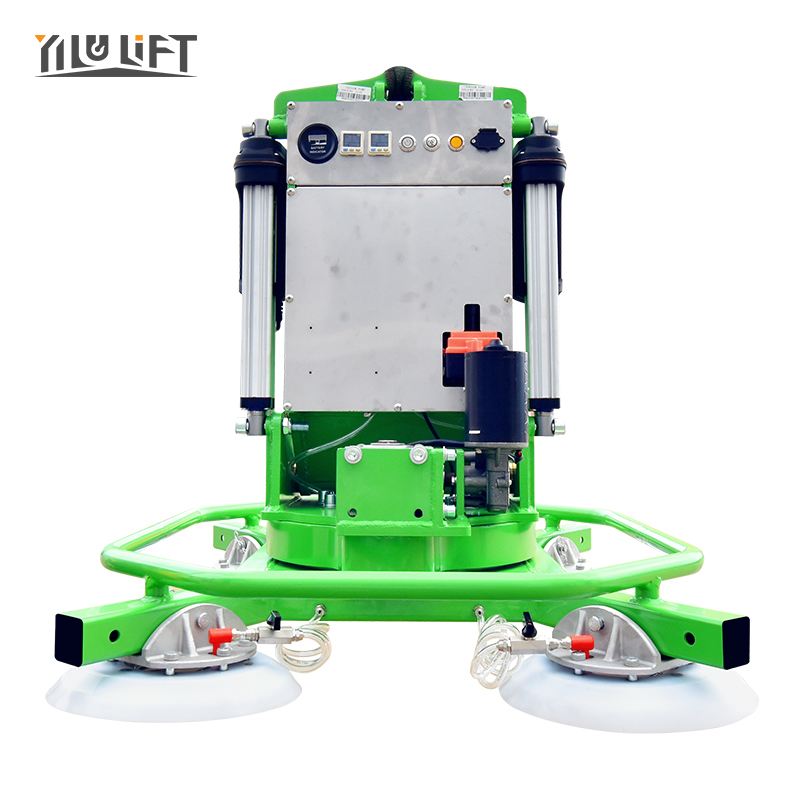

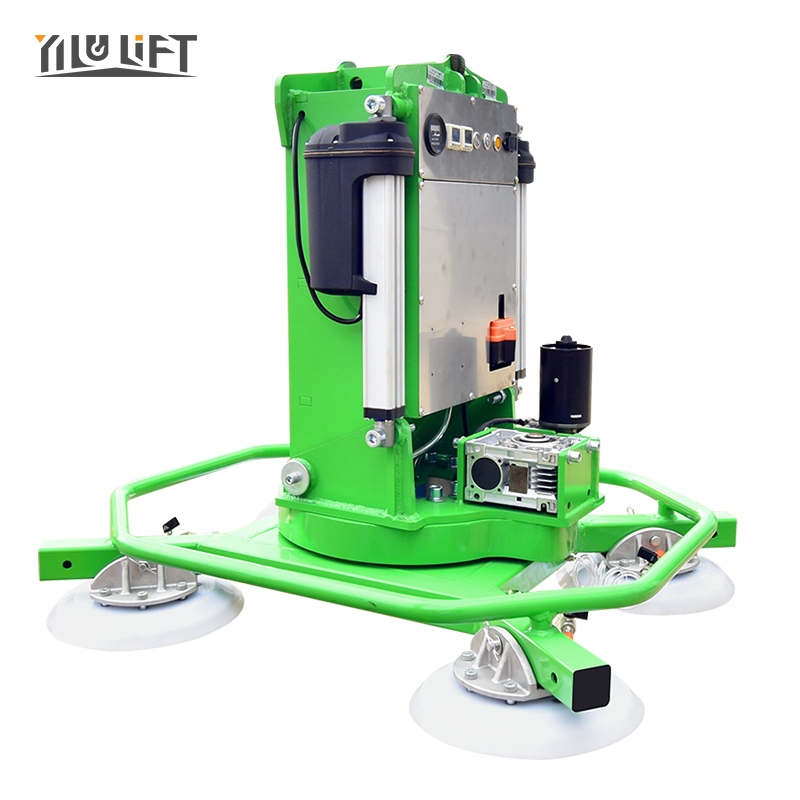

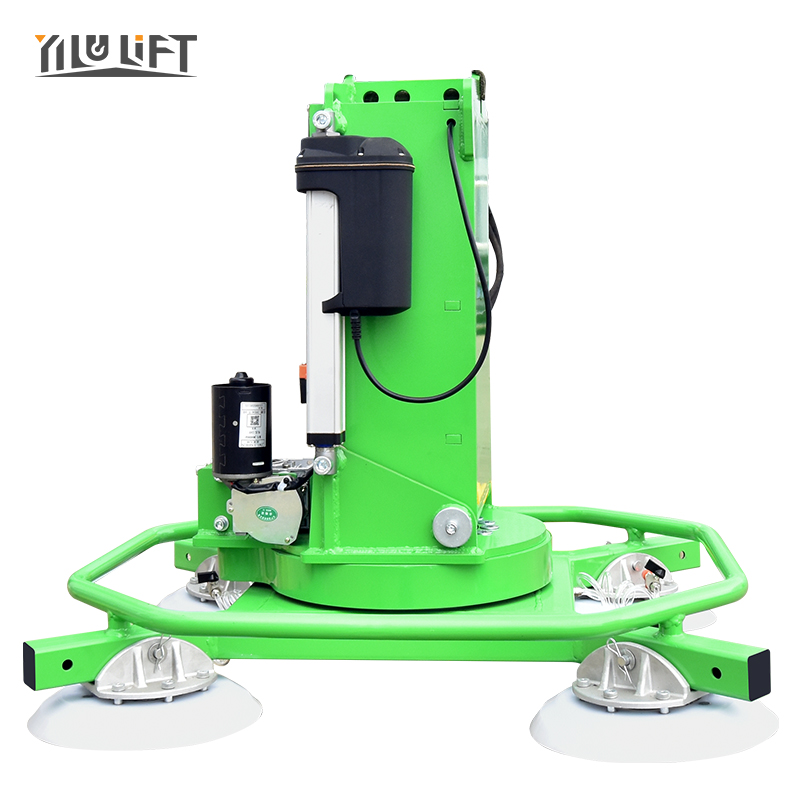

YILU X Shape Full Electric Vacuum Suction Cups Lifter

YILU X shape full electric vacuum lifters use vacuum power to grip and lift loads. The vacuum technology offers sustainable, safe and efficient handling of most types of goods. Vacuum lift systems make lifting easy for everyone, regardless of their size, strength, or gender.

 X-240924 (6)

Ergonomic vacuum lifting equipment can revolutionize material handling in your business. The YILU Multi-functional lifter is the leading vacuum lifting device in the industry. It will lift, lower, move and turn most types of goods that weigh up to 1200KG, in all possible environments, and in all working conditions.

  • Produktparameter



Modell



GL-SC-400XE

GL-SC-600XE

GL-SC-800XE

GL-SC-1000XE

GL-SC-1200XE

Lifting Capacity

kg

400

600

800

1000

1200

Cup Qty

pc

4

6

8

10

12

Single Cup Size

mm

300

300

300

300

300

Single Cup Capacity

kg

100

100

100

100

100

Drehung

/

90°electric rotate

Batterie

V/AH

24/20

Ladegerät

V/A

24V/6A

Sucker Cup Size

mm

840*930

2420*1100

1980*1620

1980*1620

1980*1620

Overall Size after packing by wooden box

mm

1100*940*500

Weight

kg

160

175

190

198

207





  • Features:

1)Detachable Arm to Reduce Size. Can be loaded into cars for easier transport.

2)Independent Air Inlets. Each suction cup can be disabled individually.

3)Remote Control Optional. Can be used to initiate or release sucking action.

4)High Configurations. It has American THOMAS vacuum pump, Japan Panasonic digital display, and battery level gauge



5)Pressure Maintains itself even when power fails.

6)High efficiency and little noise. It works by battery.

7)Higly Flexible. It can be rotated vertically and horizontally.

8)Long Working Hours. Once fully charged, it operates days nonstop.

9)Stable and safe pneumatic pressure. It’s equipped with air pressure auto regulating system

  • Details

240924-M

YILU vacuum lifters are robust and reliable tools that make lifting easy, for everyone. No matter who you are or what you need to lift, our vacuum lifters will make lifting easy and efficient. What was once a two-man job can often be carried out by one operator when incorporating a YILU vacuum lifter into your workflow. Using one of our vacuum lifters for your lifting needs will help your operations achieve a combination of efficiency and ergonomics that will boost your business.



GL-SC-2405(3)

Commitment is a big word, and not to be taken lightly. With YILU LIFT our first commitment is to offer high quality products. The second promise is innovation. We are constantly developing new models as part of the vacuum lifter family to better serve our customers unique needs. If you have a lifting need, we have a solution.



GL-SC-2405(5)

FAQ
1: Wie kann man eine Bestellung aufgeben?
Antwort: Bitte teilen Sie uns Ihre detaillierten Anforderungen (einschließlich Ihrer Produktmaterialien, Produktabmessungen und Produktgewicht) mit, und wir senden Ihnen so schnell wie möglich detaillierte Parameter und Angebote.
 2: Was ist der Preis?
Antwort: Es hängt von Ihren Anforderungen der Ausrüstung und der Versandbedingungen ab (FOB, CIF, CFR, EXW usw.)
 3: Wie kann ich die Zahlung leisten?
Antwort: Wir akzeptieren Drahtübertragung;
4: Was ist die Vorlaufzeit?
Antwort: Für das Standardprodukt beträgt die Lieferzeit 7 Tage. Für maßgeschneiderte Bestellungen ohne Aktien müssen wir die Lieferzeit entsprechend der Situation bestimmen, normalerweise sind es 20 bis 30 Tage. Wenn Sie dringende Artikel benötigen, kontaktieren Sie uns bitte.
5: Über die Garantie über die Garantie
Antwort: Unsere Maschinen genießen eine vollständige 1-Jahres-Garantie. LIFELONG TECHNISCHER SUVERTUNG per E -Mail oder Video.
6: Über die Garantie
Alibaba schützt Ihre Bestellung. Wir sind Alibaba -verifizierte Herstellung. Wir haben Alibaba -Handelsgarantie.
7: Transportmittel
ANTWORT: Sie können Sea, Air, Bahntransport wählen.
