Lifting Height
10/12/14/16/18/20/24m
Crawler Articulated Boom Lift with Basket.
INTERESSIERT AN UNSEREN PRODUKTEN?
kontaktieren sie uns

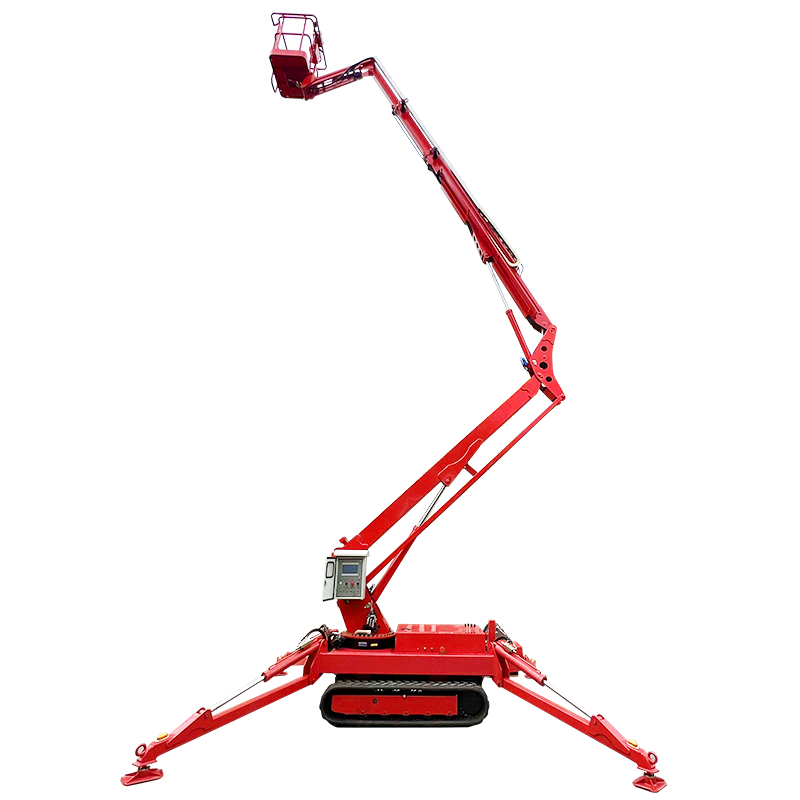

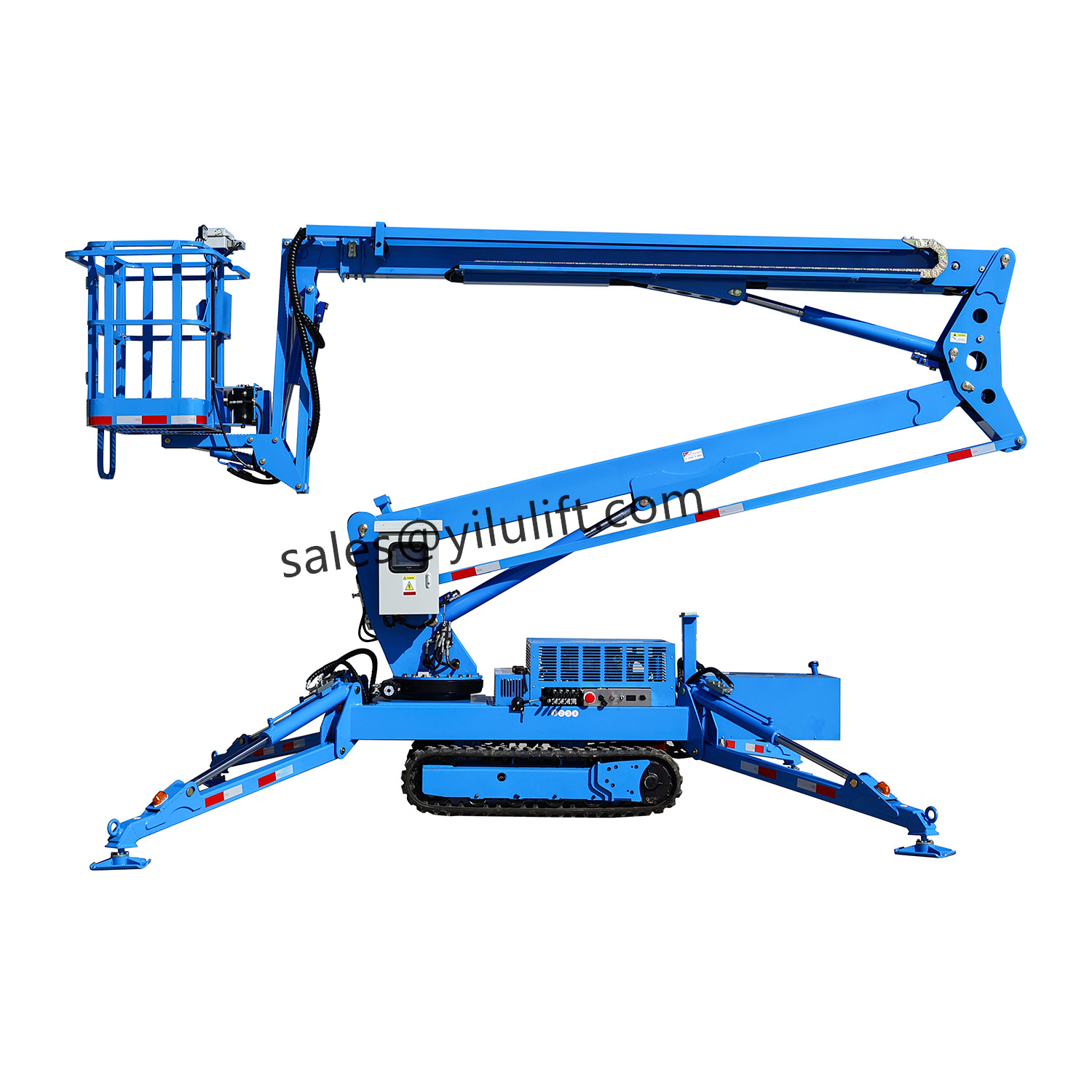

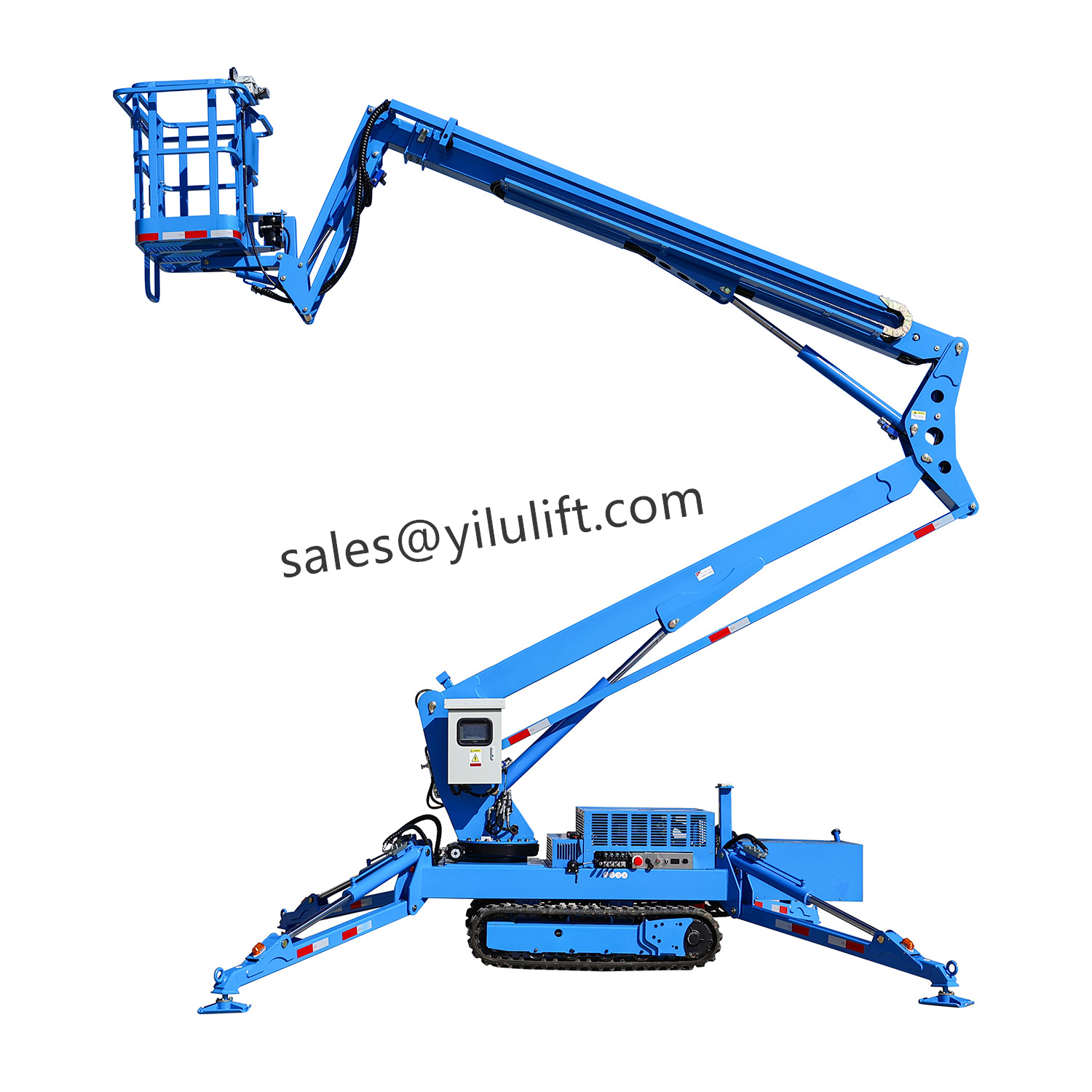

Crawler Articulated Boom Lift
Towable Articulated boom lift is one of the most ideal aerial ft platform for both indoors and outdoors maintenance work. lt can rotate 360 degree in the air and platform height is from 10m to 20m. Articulated boom lift is driven by Diesel,Gas,AC electricity,DC Battery or hybrid power.It is widely used in neighborhood unit, road light maintenance, factories high place maintenance construction site and so on.
- Spces Table
|
Modelltyp |
TBL-12C |
TBL-14C |
TBL-16C | TBL-18C | TBL-20C | TBL-22C | |
|
+Teleskop |
+Teleskop |
+Teleskop |
+Teleskop |
||||
|
Arbeitshöhe |
12M |
14M |
16M |
18M |
20M |
22M |
|
|
Hebenshöhe |
10M |
12M |
14M |
16M |
18M |
20M |
|
|
Belastungskapazität |
200KG (300KG + USD 500) |
||||||
|
Platform size |
0.9*0.7m or 0.8*1.2m as per requests |
||||||
|
Arbeitsradius |
5.5M |
6.5M |
8.5M |
10.5M |
11M |
11M |
|
|
Nettogewicht |
2200KG |
2400KG |
2700KG |
3400KG |
4700KG |
5200KG |
|
|
Supporting Legs Stride |
3×4.7M |
3.6×4.7M |
3.6×4.7M |
3.9×4.9M |
3.9×4.9M |
3.9×4.9M |
|
|
Working Temperature |
-25~60℃ environmental temperature |
||||||
|
20’/40’GPLoading Qty |
2set/4set |
2set/4set |
2set/4set |
2set/4set |
2set/4set |
2set/4set |
|
Feature
1. 360°rotating plate,with articulated boom,can achieve the biggest working range
2. Optional diesel/gasoline/battery power
3.100% waterproof and dust proof control box. Suitable for outdoors working.
4. Self Leveling basket with anti-pinch design and automatic hydraulic outriggers,with caution lights
5.Humanized access hole for daily convenient maintenance
6. Double acting cylinders with balance valve and emergency decline switch
7. Equipped with Torsion Shaft with great shock absorption function
8. Hydraulic oil filtration alarm system,remind you replace hydraulic oil when there is impurity in the oil
9. Basket and Arm lock system avoid equipment body waggling during transportation
10.Humanized Flood lights on platform,traffic lights can be connected on the trailer
11.Above sales pack,includes FREE quick wear parts
