Load Capacity
3t/5t/8t/10t/12t/14t/16t/18t
Good Stability Spider Crane for Construction Site
INTERESSIERT AN UNSEREN PRODUKTEN?
kontaktieren sie uns
Spinnenkran
Mini-crawler cranes are the latest must-have tool for the glazing, steel erection, and construction industries. YILU Spider cranes offer a compact design that allows for operation in confined areas. The smaller models can travel through a standard width door in their travel position, while other models can fit through a standard double door.
- Features & Advantages
1. The Crawler Spider Crane for moving loads quickly, easily, and safely.
2. Spider crane, suitable for occasions with limited space.
3. The spider crane is a full-slewing, boom-type, full-hydraulic transmission crane.
4. The main arm is 4-5 sections. The main arm section adopts a U-shaped structure. The single-st
age telescopic oil cylinder and the wire rope telescopic mechanism can realize the synchronous
expansion and contraction of the main arm.
5. The telescoping limit of the boom uses the double insurance of the marking line and the
alarm
- Produktparameter
|
Modell |
CL1.5 |
CL2.0 |
CL3.0 |
CL5.0 |
CL8.0 |
CL10.0 |
CL12.0 |
CL14.0 |
CL16.0 |
|
|
Spezifikationen |
1.5ton |
2ton |
3ton |
5ton |
8ton |
10ton |
12ton |
14ton |
16ton |
|
|
Maximaler Betriebsradius |
6m |
6m |
10.5m |
15 m |
18m |
18m |
19m |
23 m |
23 m |
|
|
Maximaler Bodenlift |
6.5m |
6.5m |
10.8m |
17m |
21m |
21m |
21m |
25m |
25m |
|
|
Winch -Gerät |
Hook Lifting Speed |
0-8m / min (4 seile) |
12 m / min (4 seile) |
11 m / min (4 seile) |
10 m / min (4 seile) |
|||||
|
Stahlseil |
Φ8mm × 45 m |
Φ12mm × 80 m |
Φ12mm × 100 m |
Φ12mm × 120 m |
Φ12mm × 140 m |
|||||
|
Teleskopvorrichtung |
Boomform |
2m*4 -uper |
2m*4 -uper |
2,4 m*6-abschnitt |
4m*5-abschnitt |
5m*5-abschnitt |
5m*5-abschnitt |
5m*5-abschnitt |
6m*5-abschnitt |
6m*5-abschnitt |
|
Boom Length/Time |
6.5m/20s |
6.5m/20s |
3.1m-9.2m/20s |
4.5m-17m/54s |
5.5m-21m/54s |
12.3m/58s |
12.3m/60s |
12.3m/40s |
12.3m/40sec |
|
|
Luffing Device |
Boom Angle/Speed |
0-78 ° / 13s |
0-78 ° / 13s |
0-78 ° / 13s |
0-78 ° / 13s |
0-78 ° / 13s |
0-78 ° / 15s |
0-78 ° / 17s |
0-78 ° / 17s |
0-78 ° / 17s |
|
Gyroskop |
Rotationswinkel |
0-360 ° (kontinuierlich) |
||||||||
|
Rotation Speed |
60s |
60s |
60s |
38s |
38s |
40s |
42s |
42s |
42s |
|
|
Ausleger |
Bewegungsform |
Manuelles Schraubverschraub+Öldruck Automatische Stütze (zwei Beine) |
Manuelles Schraubverschraub+hydraulischer Teleskop+Automatische Unterstützung |
|||||||
|
Ausrüstung |
Wandermodus |
Hydraulikmotorantrieb |
||||||||
|
Gehensgeschwindigkeit |
0-2,5 km / h |
|||||||||
|
Strukturfähigkeit |
25° (36%) |
|||||||||
|
Elektrische Maschinerie |
Stromspannung |
AC 380V (Customized according to customer needs) |
||||||||
|
Motor |
Hersteller |
Honda |
Honda |
Changchai |
Yunnei |
Yunnei |
Yunnei |
Yunnei |
Yuchai |
Yuchai |
|
Startmodus |
Elektrischer Start |
|||||||||
|
Kraftstoff /Volume |
Benzin / 4L |
Gasoline/15L |
Diesel Oil/15L |
Dieselöl / 45L |
||||||
|
Betriebssystem |
Boom /Leg |
Manual operation, manual walking (optional remote control) |
||||||||
|
Leistung |
AC+Benzin |
AC+Benzin |
AC+Diesel |
AC+Diesel |
AC+Diesel |
AC+Diesel |
AC+Diesel |
AC+Diesel |
AC+Diesel |
|
|
Gesamtgröße (l*w*h) |
2,5*0,6*1,5 m |
2.5*0.65*1.5m |
3,5*0,8*1,85 m |
4,7*1,5*2,25 m |
6.15*1,6*2,25 m |
6.15*1,8*2,3 m |
6.15*1,86*2,48 m |
6,6*2*2,48 m |
6,6*2*2,48 m |
|
|
Nettogewicht |
1300 kg |
1600kg |
2700 kg |
6100 kg |
8700 kg |
10500 kg |
12500 kg |
14500 kg |
16500 kg |
|

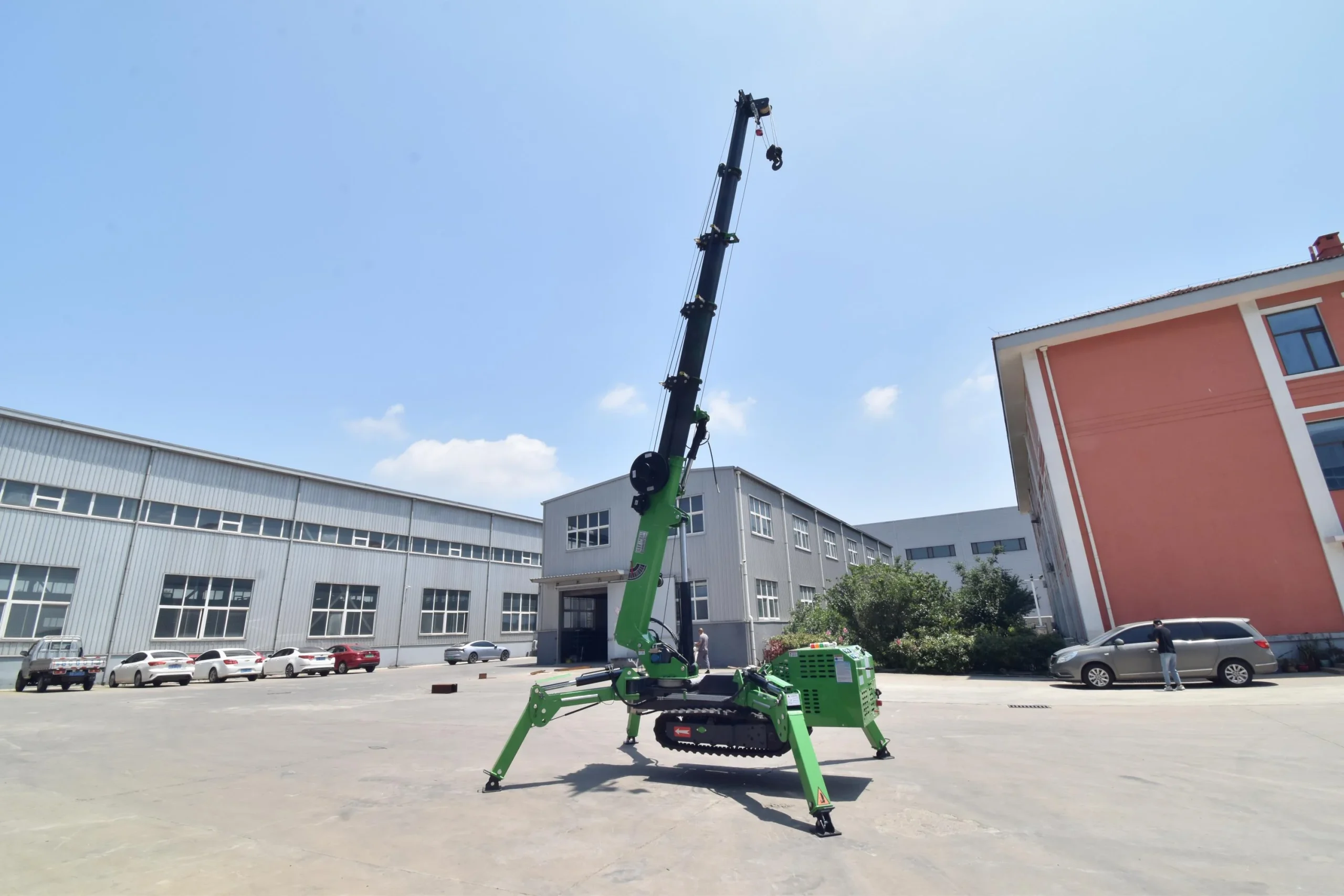

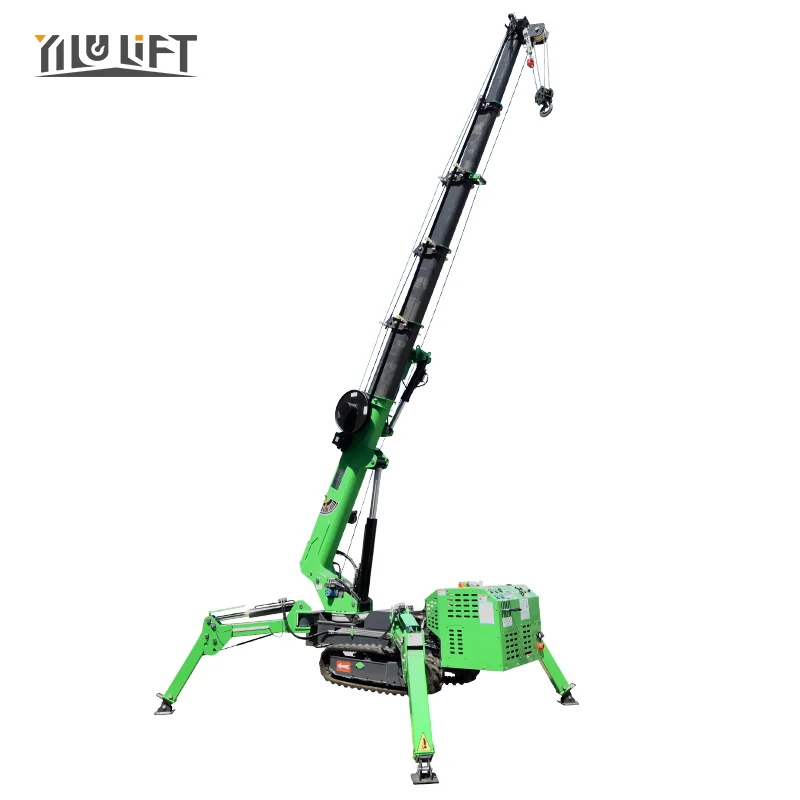

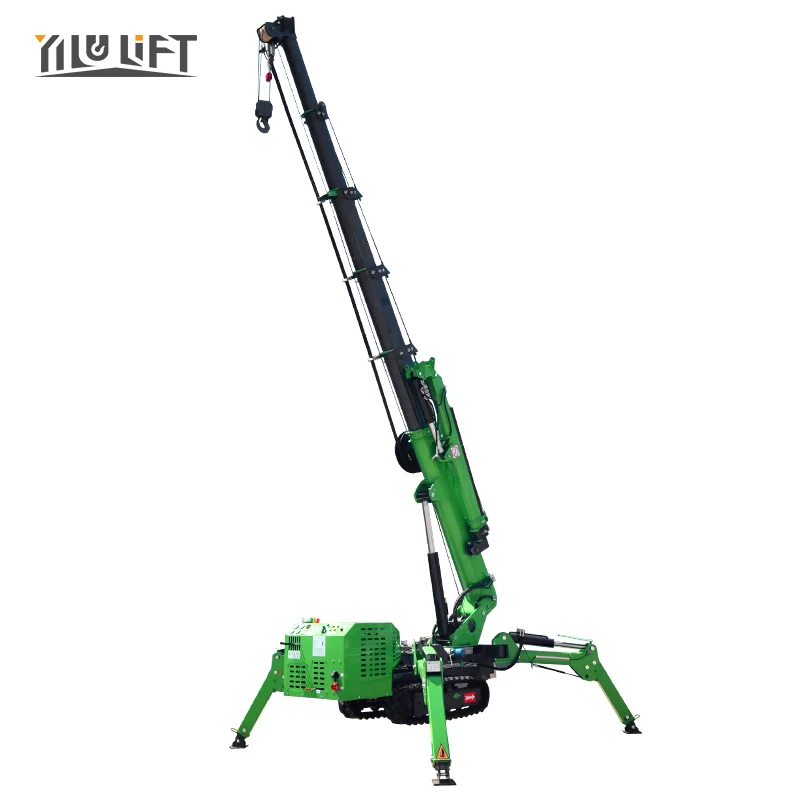

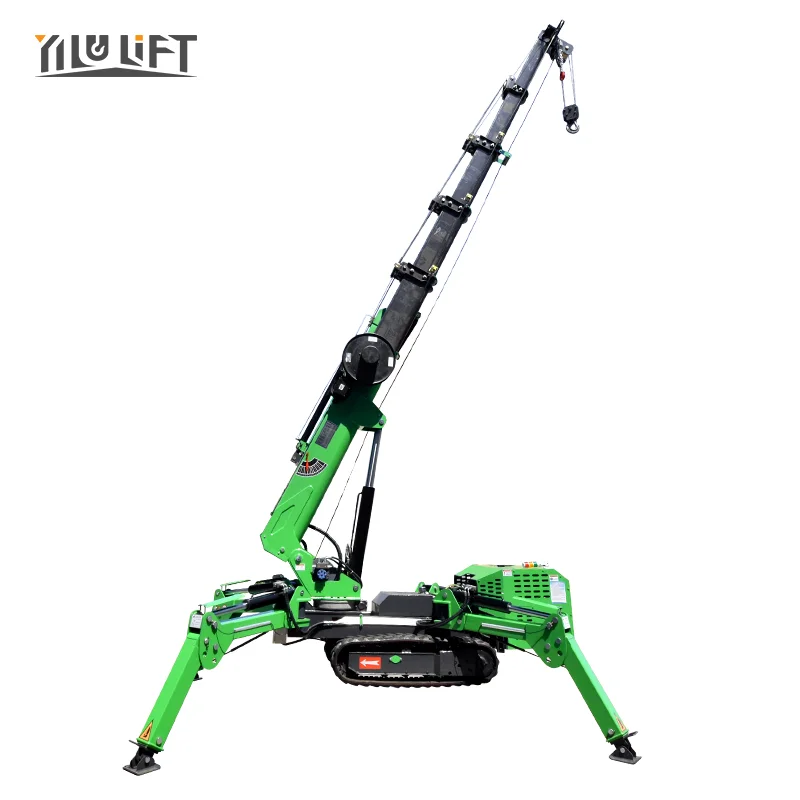

- Photos
Complete with some of the same features on the smaller spider crane models, such as an Electronic Display Load Moment Indicator, On-board Self Diagnostic Computer System, and a Full Function Wireless Remote, this mini-crawler is designed for ease of use. It’s mounted on dual tracks and It has the ability to rotate 360 degrees in place, making it easy to maneuver into and out of tight spots. It comes standard with a Quick Disassemble System allowing for the outriggers, boom, and frame assembly to be removed from the carrier to reduce the weight for transport or hoisting.
Mini spider crane is our most versatile. While popular among many industries, the spider crane is quickly becoming one of the most in demand glazing and construction tools to set glass and materials. Available models offer maximum lifting capacities of 1.2Ton 2Ton 3Ton 5Ton 8Ton 10Ton 12Ton 14Ton, Featuring a variable geometric footprint courtesy of adjustable outriggers allowing for set-up in tight spots such as hallways, balconies, or around obstacles, this mini crane acting as a glazing tool is tackling projects once thought impossible.
- Unser Team
Commitment is a big word, and not to be taken lightly. With YILU LIFT our first commitment is to offer high quality products. The second promise is innovation. We are constantly developing new models as part of the spider crane family to better serve our customers unique needs. If you have a lifting need, we have a solution.
As an standard feature of the spider crane, these mini cranes are equipped with a wireless radio remote control system; freeing the operator from being tethered to the crane. Couple this crane with a glass manipulator and this crane turns into one of the most powerful glazing tools on the market. The champion of the cranes, the mini-cranes can be seen everywhere from the rooftops to the oil fields.FAQ
| 1: Wie kann man eine Bestellung aufgeben? | |
| Antwort: Bitte teilen Sie uns Ihre detaillierten Anforderungen (einschließlich Ihrer Produktmaterialien, Produktabmessungen und Produktgewicht) mit, und wir senden Ihnen so schnell wie möglich detaillierte Parameter und Angebote. | |
|
|
| Antwort: Es hängt von Ihren Anforderungen der Ausrüstung und der Versandbedingungen ab (FOB, CIF, CFR, EXW usw.) | |
| 3: Wie kann ich die Zahlung leisten? | |
| Antwort: Wir akzeptieren Drahtübertragung; | |
| 4: Was ist die Vorlaufzeit? | |
| Antwort: Für das Standardprodukt beträgt die Lieferzeit 7 Tage. Für maßgeschneiderte Bestellungen ohne Aktien müssen wir die Lieferzeit entsprechend der Situation bestimmen, normalerweise sind es 20 bis 30 Tage. Wenn Sie dringende Artikel benötigen, kontaktieren Sie uns bitte. | |
| 5: Über die Garantie über die Garantie | |
| Antwort: Unsere Maschinen genießen eine vollständige 1-Jahres-Garantie. LIFELONG TECHNISCHER SUVERTUNG per E -Mail oder Video. | |
| 6: Über die Garantie | |
| Alibaba schützt Ihre Bestellung. Wir sind Alibaba -verifizierte Herstellung. Wir haben Alibaba -Handelsgarantie. | |
| 7: Transportmittel | |
| ANTWORT: Sie können Sea, Air, Bahntransport wählen. |
