Hebenshöhe
4m/6m/8m/10/11.8m/14m
Selbstantriebsantrieb
INTERESSIERT AN UNSEREN PRODUKTEN?
kontaktieren sie uns

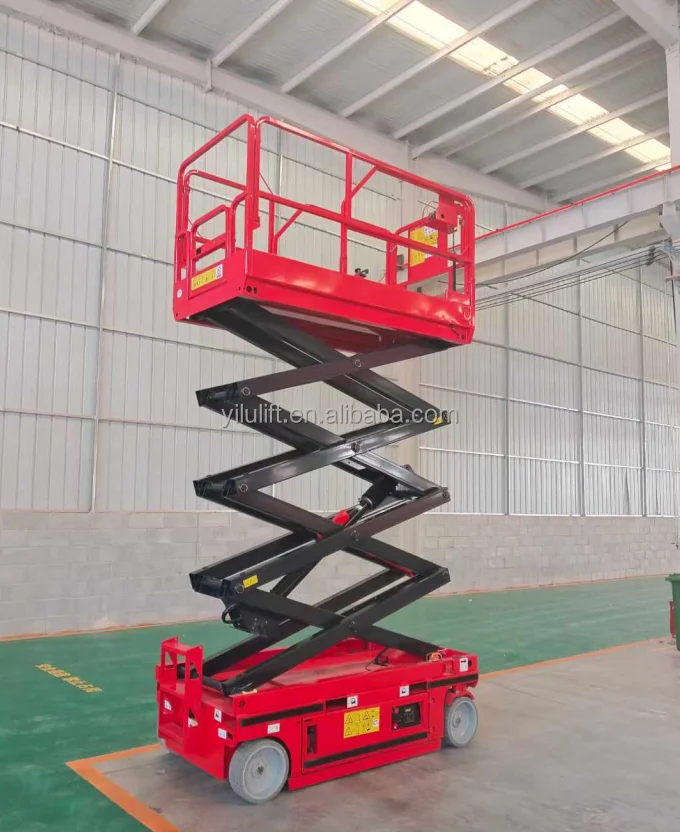

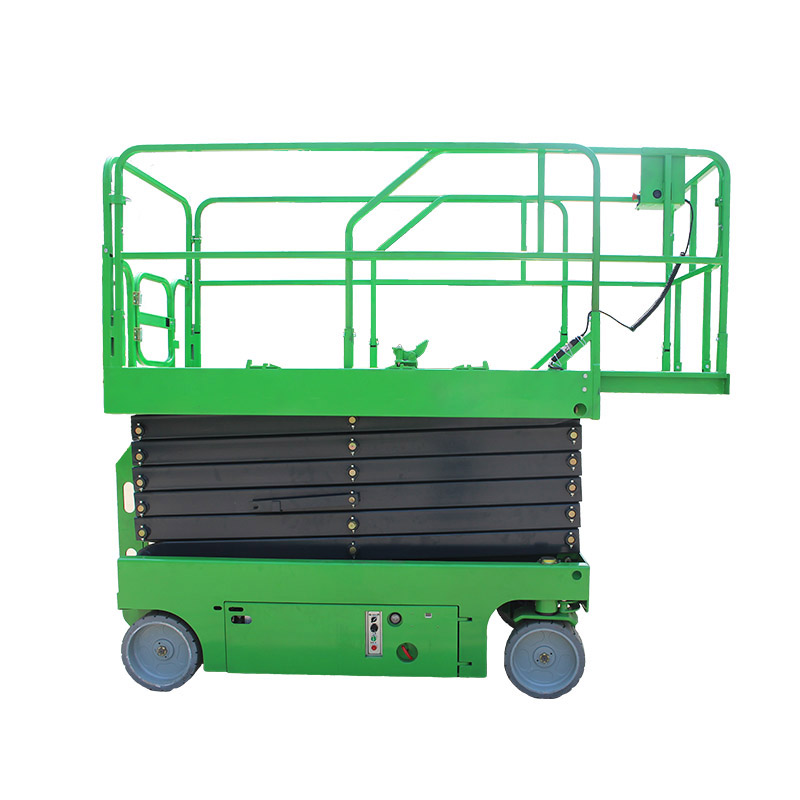

Electric Hydraulic Mobile Self Propelled Scissor Lift
Aerial Lift Platform equip high configuration with America TORJAN Battery, Americia CUITIS control system,Sweden bucher pump station,Italy doyle hydraulic valve and America white driving wheel.It is powered by DC, can be controlled by manually and move automatically and the moving speed is adjustable. There is many safety precautions, for example ,explosion-proof valves,spillover valve and emergency decline valve etc..
- Produktparameter
|
Modell |
GTJZ08S |
GTJZ08F |
GTJZ10F |
GTJZ12F |
GTJZ14F |
GTJZ16F |
|
|
Lift Rated Capacity |
kg |
230 |
450 |
450 |
320 |
320 |
230 |
|
Platform Extend Capacity |
kg |
110 |
110 |
113 |
113 |
113 |
110 |
|
Max.Platform Height(B) |
m |
6 |
6 |
8 |
10 |
11.8 |
13.8 |
|
Max. Working Height(A) |
m |
8 |
8 |
10 |
12 |
13.8 |
15.8 |
|
Overall Length(C) |
mm |
1850 |
2430 |
2430 |
2430 |
2430 |
2850 |
|
Overall Width(D) |
mm |
790 |
1210 |
1210/890 |
1210 |
1210 |
1310 |
|
Overall Height(Guardrails unfoldable) |
mm |
2200 |
2200 |
2350 |
2470 |
2600 |
2620 |
|
Overall Height(Guardrails foldable)(E) |
mm |
1680 |
1670 |
1800 |
1930 |
2060 |
2060 |
|
Platform Size(F) |
mm |
1680*740 |
2270*1120 |
2270*1120/860 |
2270*1120 |
2270*1120 |
2700*1110 |
|
Platform Extend Length(G) |
mm |
900 |
900 |
900 |
900 |
900 |
900 |
|
Ground Clearance(Retract/Elevated) |
mm |
100/19 |
100/19 |
100/19 |
100/19 |
100/15 |
100/15 |
|
Wheelbase |
mm |
1390 |
1870 |
1870 |
1870 |
1870 |
2280 |
|
Min.turning Radius |
mm |
300/1750 |
0/2400 |
0/2400 |
0/2400 |
0/2400 |
0/2400 |
|
Lifting Motor/Moving Motor |
V/kw |
24/3.3 |
24/4.5 |
24/4.5 |
24/4.5 |
24/4.5 |
24/4.5 |
|
Max.Drive Speed (platform Stowed/Elevated) |
km/h |
3.8/0.8 |
3.5/0.8 |
3.5/0.8 |
3.5/0.8 |
3.5/0.8 |
3.5/0.8 |
|
Lifting speed(up/down) |
s |
100/80 |
100/80 |
100/80 |
100/80 |
100/80 |
100/80 |
|
Anerold battery |
V/Ah |
4*6/200 |
4*6/200 |
4*6/200 |
4*6/200 |
4*6/200 |
4*6/240 |
|
Ladegerät |
V/A |
24/30 |
24/30 |
24/30 |
24/30 |
24/30 |
24/30 |
|

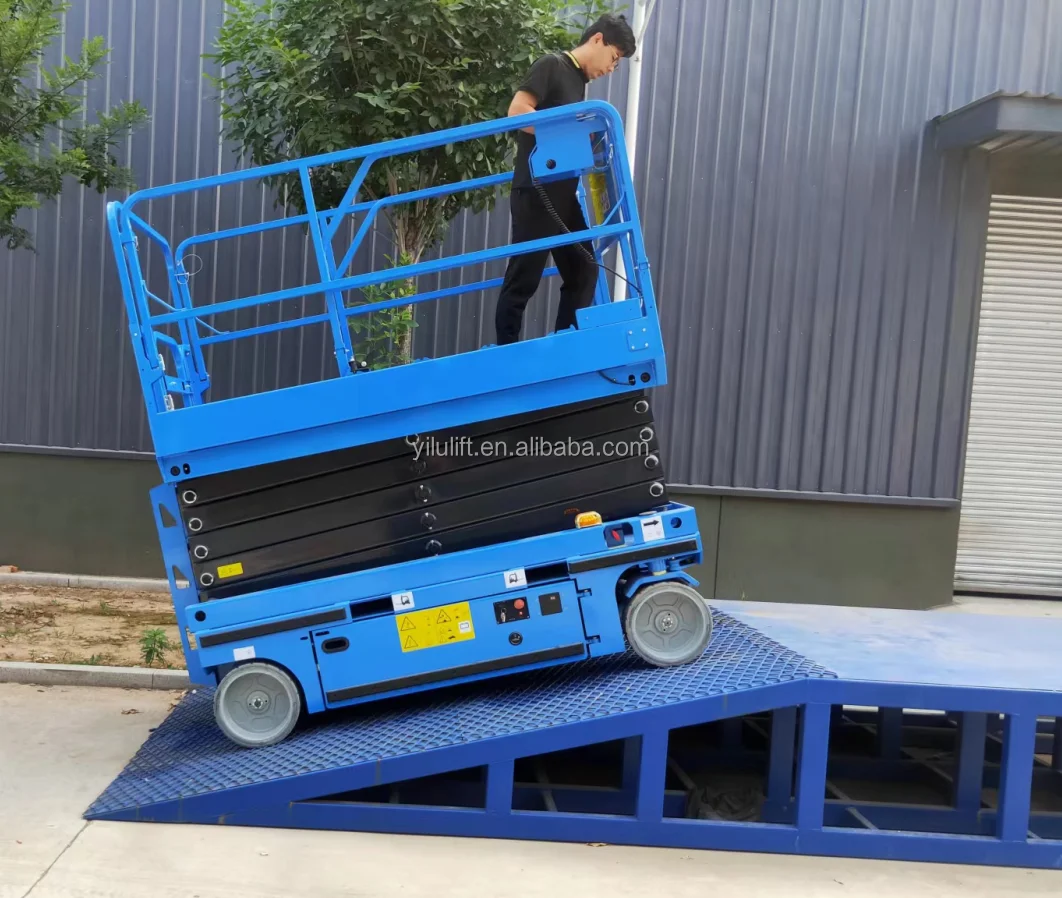

Max.Climbing Capacity |
% |
25 |
25 |
25 |
25 |
25 |
25 |
|
Maximum working Angle(indoor/outdoor) |
° |
1.5/3 |
1.5/3 |
1.5/3 |
1.5/3 |
1.5/3 |
1.5/3 |
|
Driving Wheel Size |
mm |
Φ305*114 |
Φ381*127 |
Φ381*127 |
Φ381*127 |
Φ381*127 |
Φ381*127 |
|
Overall Net Weight |
kg |
1430 |
2250 |
2350/2260 |
2550 |
2980 |
3670 |
- Main Features
- Proportional control
- Automatic braking system
- Buzzer
- Extended platform
- Automatic pothole protection system
- Emergency descent system
- Trumpet
- Charging protection system
- Platform self-locking door
- Emergency stop button
- Work schedule
- Full range of walking
- Oil pipe explosion protection system
- Safety maintenance support rod
- Non-marking tires
- Fault diagnosis system
- Standard transport forklift holes
- 4×2 drive
- Tilt protection system
- Folding fence

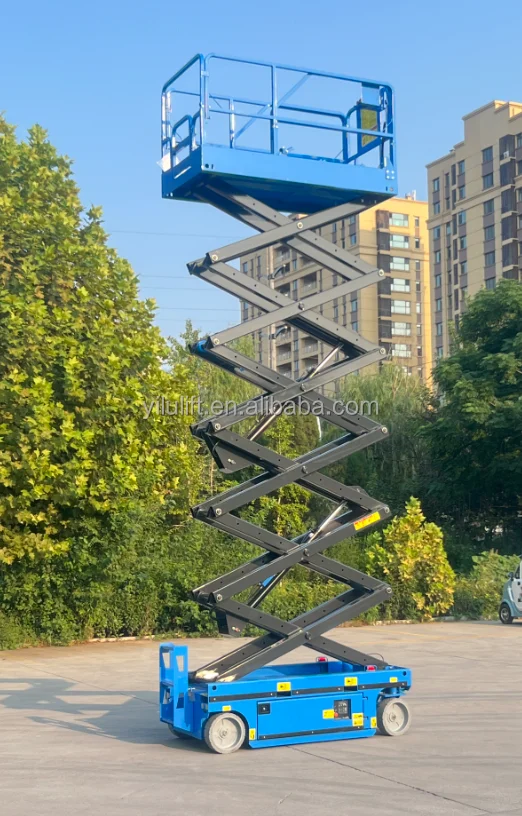

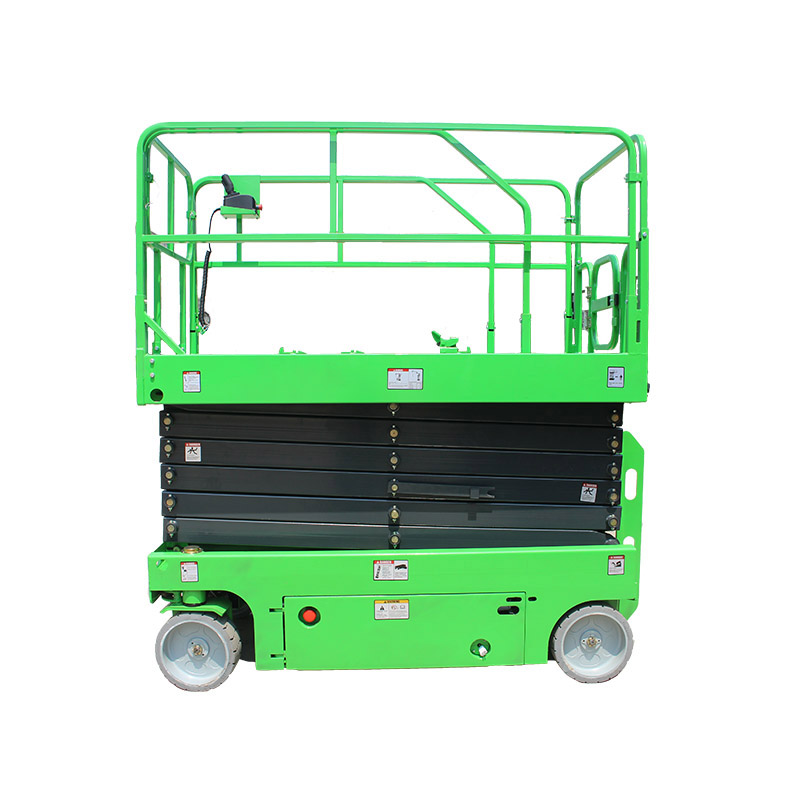

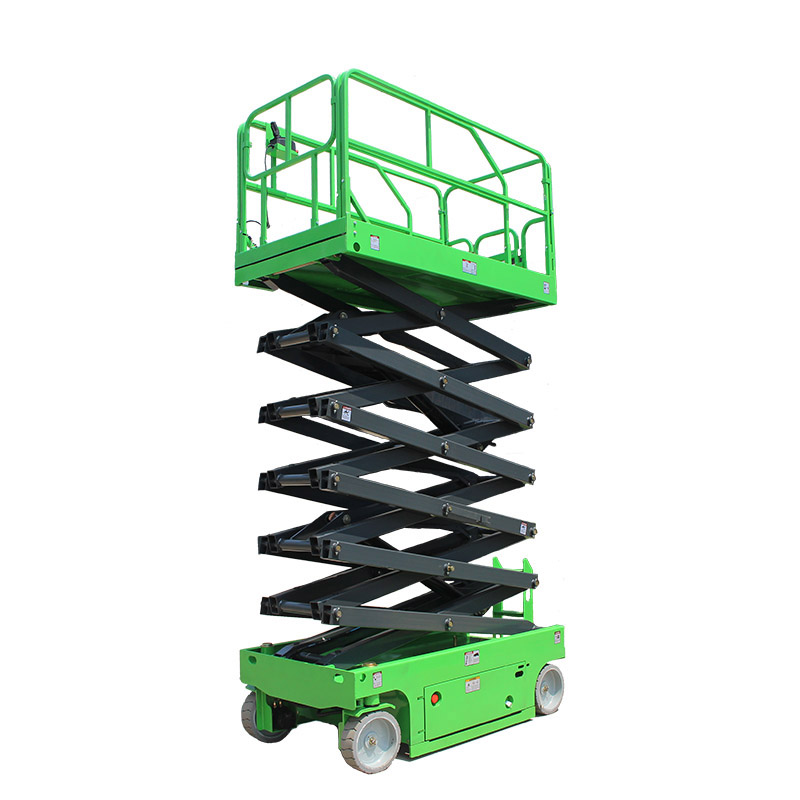

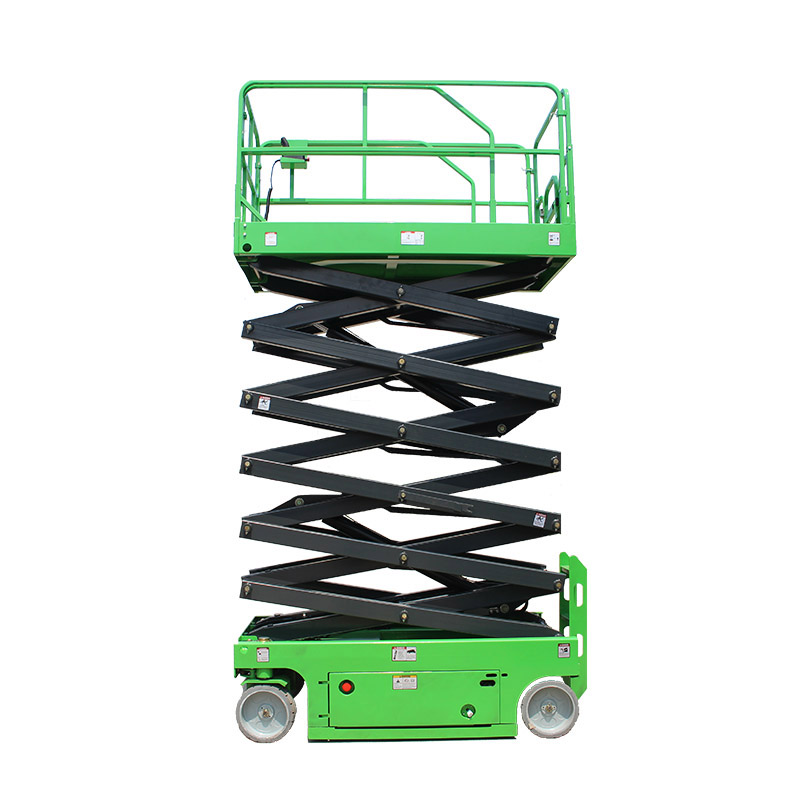

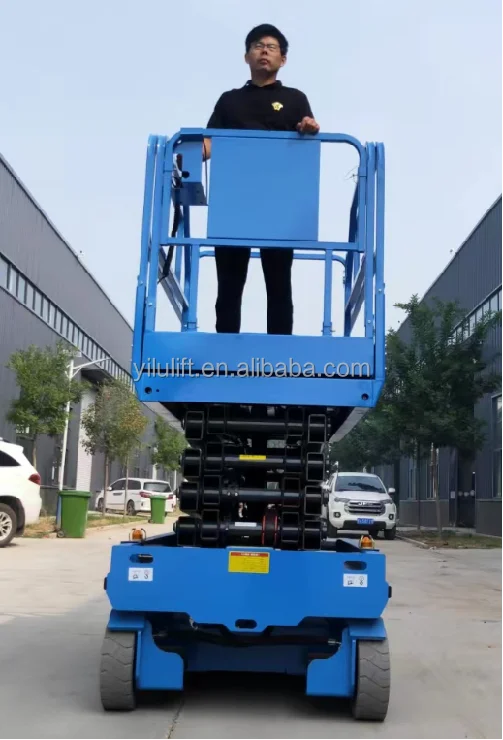

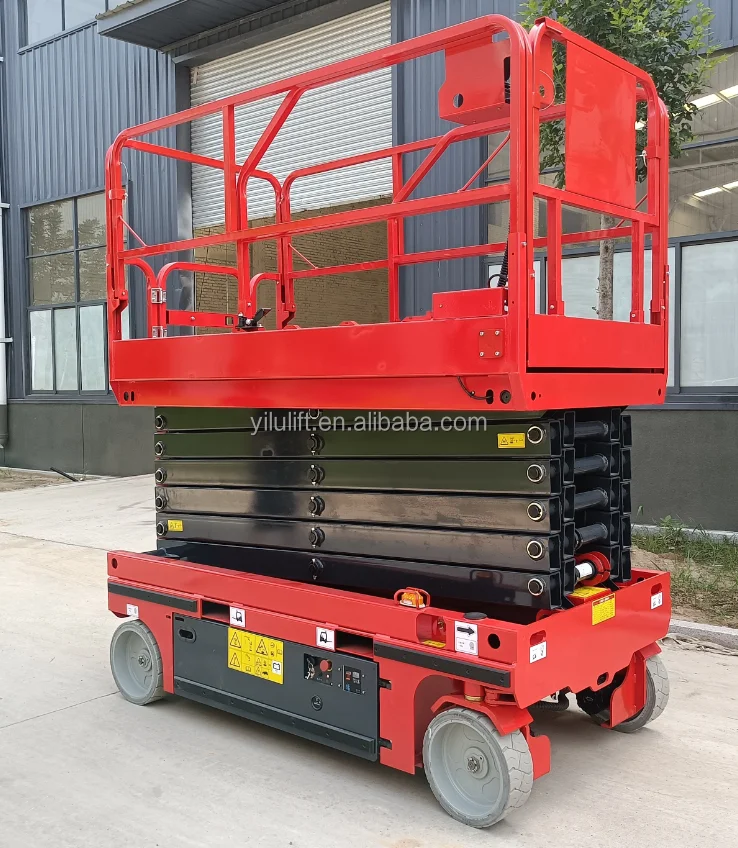

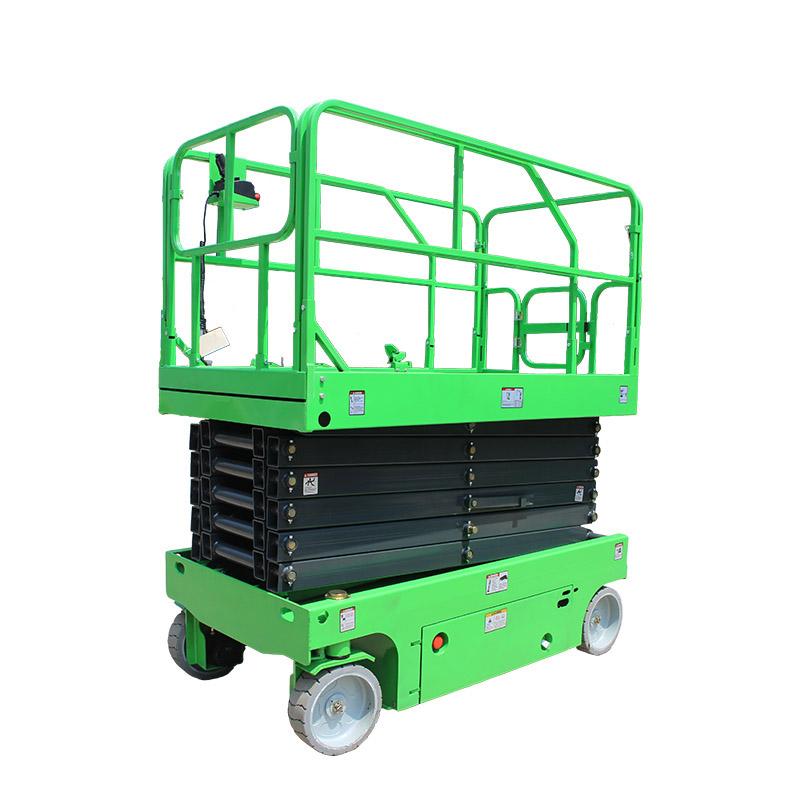

- Detail Photos
YILU electric and rough terrain scissor lifts offer you high performance and versatility ,boosting work site productivity.This type of aerial work platform lift is ideal for indoor maintenance or outdoor construction tasks. Electric scissor lifts have longer runtimes and promote quieter working environments. Engine powered scissor lifts traverse rough terrain, and the platform lifts plenty of tools and people to height.
- Unser Team
- FAQ
| 1: Wie kann man eine Bestellung aufgeben? |
| Antwort: Bitte teilen Sie uns Ihre detaillierten Anforderungen (einschließlich Ihrer Produktmaterialien, Produktabmessungen und Produktgewicht) mit, und wir senden Ihnen so schnell wie möglich detaillierte Parameter und Angebote. |
| 2: Was ist dein Preis? |
| Antwort: Es hängt von Ihren Anforderungen der Ausrüstung und der Versandbedingungen ab (FOB, CIF, DDP) |
| 3: Wie soll ich bezahlen? |
| Antwort: Wir akzeptieren Drahtübertragung; |
| 4: Was ist die Lieferzeit? |
| Antwort: Für das Standardprodukt beträgt die Lieferzeit 7 Tage. Für individuelle Bestellungen ohne Aktien müssen wir die Lieferzeit entsprechend der Situation bestimmen, wenn Sie dringende Artikel benötigen, kontaktieren Sie uns bitte. |
| 5: Über die Garantie über die Garantie |
| Antwort: 1-Jahres-Garantie. LIFELONG TECHNISCHER SUVERTUNG per E -Mail oder Video. |
| 6: Über die Garantie |
| Answer: Alibaba will protect the order. We have Alibaba trade assurance. |
| 7: Transportmittel |
| ANTWORT: Sie können Sea, Air, Bahntransport wählen. |
