Spider Crane Boom Lengths for Optimal Performance

When you’re knee-deep in a construction gig, picking the right spider crane can make or break your day. I’ve seen sites where a mismatched boom turns a simple lift into a headache. Spider cranes, those compact beasts with legs that spread out like a spider’s, shine in tight spots. But the boom length? That’s the real game-changer. It dictates how far you reach, what you lift, and how safe the whole operation stays. Today, we’re diving into what makes boom lengths tick, especially with gear from YILU LIFT out of Qingdao, China. They’ve been shipping their CL series to over 100 countries, from the US to Saudi Arabia, and folks swear by their durability. Let’s break it down.

What Defines a Spider Crane Boom

Ever wonder what sets a spider crane’s boom apart from your standard crane arm? It’s all about that clever engineering that packs power into a small frame.

Telescopic Structure Design

Most spider crane booms telescope, meaning they extend in sections like a spyglass. This lets you adjust on the fly. YILU’s booms use a U-shaped main arm with a single-stage oil cylinder and wire rope setup. It syncs the sections smoothly. For instance, their CL3.0 model has a 6-section boom stretching from 3.1 meters to 9.2 meters in just 20 seconds. Handy when you’re squeezing into urban builds or factory overhauls.

Maximum Extension Ranges

Boom extensions vary wildly by model. Smaller ones top out at 6-7 meters, while beefier versions hit 25 meters or more with a fly jib. Industry-wide, you’ll see reaches up to 83 feet in some setups, but it depends on the crane’s size. YILU’s CL14.0 pushes 23 meters max radius, perfect for high-rises. Just remember, longer isn’t always better—wind or uneven ground can mess with stability.

YILU CL Series Specifications

YILU’s CL lineup starts small with the CL1.5 at 6.5 meters boom and scales up. The CL8.0, a hot seller, boasts a 5-section boom to 18 meters. Weights run from 1,300 kg on the light end to 16,500 kg for the CL16.0. They’ve got Honda or Yunnei engines, diesel tanks up to 45 liters, and options for remote control. Exported worldwide, these cranes handle everything from glass installs in Australia to bridge work in Germany. Side note: I once chatted with a contractor in Canada who said YILU’s quick-disassemble system saved him hours on setup—little things like that add up.

How Does Boom Length Affect Lifting Capacity

Boom length isn’t just about reach; it directly tweaks how much weight you can hoist. Push it too far, and things get dicey.

Load Reduction at Extensions

As the boom stretches, capacity drops. Physics, right? A 30-meter boom at full extension might lift half what it does retracted. For example, on a typical spider crane, a 10-ton model could handle 10 tons close-in but only 2 tons at max reach. YILU’s charts show this clearly—the CL5.0 lifts 5 tons at short range but tapers off beyond 15 meters.

Stability and Balance Factors

Longer booms need solid outriggers to counter tip-over risks. Spider legs spread wide for balance, but add wind or slopes, and you’re testing limits. Gradeability up to 25 degrees helps, like in YILU models. I’ve heard stories where ignoring this led to near-misses—always check the ground first.

YILU Models like CL5.0 Recommendations

For mid-range jobs, grab the CL5.0. Its 17-meter boom handles 5 tons max, with a 15-meter radius. Pair it with their remote for precise control. If you’re in tight city spots, this one’s a winner—exported to places like Spain where space is premium.

Why Choose Variable Boom Lengths

Fixed booms? Nah, variable ones give you options. They adapt, saving time and hassle.

Adaptability to Site Constraints

In cramped warehouses or behind buildings, a short boom gets you in close. Extend for overhead work. YILU’s telescoping shines here—CL10.0 adjusts from 4.5 to 18 meters, fitting odd angles.

Enhanced Operational Versatility

One crane, multiple tasks. Lift glass one minute, steel beams the next. Versatility cuts costs—no swapping machines. YILU adds fly jibs for extra reach, up to 25 meters on bigger models.

YILU CL8.0 and CL10.0 Options

These bad boys offer 18-meter booms with 8-10 ton lifts. CL8.0’s 360-degree rotation and 2.5 km/h crawl speed make them agile. Folks in Brazil use them for mining—tough terrain, no problem. If you’re eyeing exports, YILU customizes voltage too.

What Influences Boom Length Selection

Picking the right length? It’s not guesswork. Factor in the job details.

Project Height Requirements

Tall structures demand longer booms. A 10-story facade? Aim for 20+ meters. YILU’s CL12.0 hits 21 meters ground lift, ideal for urban renos.

Terrain and Space Limitations

Rough ground or narrow alleys limit choices. Spider cranes excel here with compact tracks—YILU’s rubber ones swap for non-marking tires. CL3.0 fits through doors at 0.8 meters wide.

Complementary YILU Floor Crane Integration

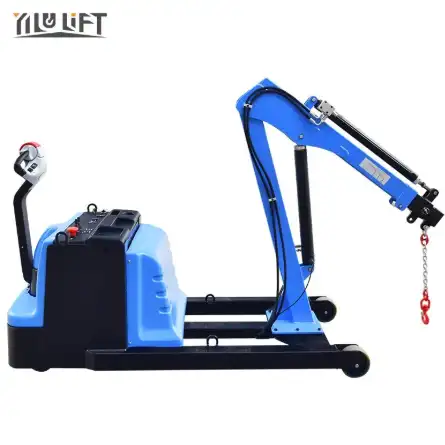

Don’t forget floor cranes for indoor boosts. YILU’s EPFC-25 reaches 2.5 meters horizontally, lifting 1,200 kg. Use it alongside spider models to cut manual labor. In a warehouse setup I saw once, pairing them halved the crew needed—smart move for efficiency.

How Can Boom Length Boost Efficiency

Right length means quicker jobs, less downtime. It’s all about flow.

Faster Setup Times

Telescopic booms deploy in seconds—20 for YILU’s smaller ones. No rigging hassles. On a busy site, that shaves hours off the day.

Reduced Manual Handling

Longer reach grabs loads from afar, skipping extra moves. YILU’s electric options run quiet, battery life up to 4 hours nonstop. Less grunt work, happier teams.

YILU CL3.0 for Compact Sites

This model’s 9.2-meter boom suits small jobs, like indoor lifts in Mexico factories. At 2,000 kg weight, it’s easy to transport. Remote control optional—keeps operators safe.

What Safety Features Support Longer Booms

Safety first with long booms. They can sway, so built-in tech matters.

Telescoping Limit Alarms

Alarms buzz at max extension. YILU includes double insurance—marking lines and alerts—to prevent overreach.

Double Insurance Mechanisms

Outriggers auto-support, explosion-proof valves guard hoses. YILU’s self-diagnostic computer catches issues early.

YILU’s Built-in Stability Tech

Load moment indicators show real-time stats. Wireless remotes let you stand clear. In Russia, where winters bite, their diesel engines and sturdy builds hold up.

Why Invest in YILU Spider Cranes

Wrapping up, YILU stands out in a crowded market. Their focus on innovation from Qingdao pays off.

Durable U-Shaped Boom Construction

That U-shape resists bends, lasts longer. Wire rope telescoping keeps it smooth over years.

Export-Quality Reliability

Shipped to 100+ spots, meets global standards. CE certified, customizable. A pal in Qatar raved about their after-sales—parts ship fast.

Tailored Recommendations for Capacities

From 1.5-ton minis to 16-ton heavies, pick by need. For boom-focused buys, CL8.0 or CL10.0 deliver. Contact YILU at their site for quotes—worth it for the reliability.

Spider crane boom lengths aren’t one-size-fits-all. Get the match right, and your projects run smoother. YILU’s got the goods; I’ve seen them in action. Sometimes, though, I miss the old manual cranes—built character, you know? But progress wins.

FAQs

Q1: What’s the average boom length for a beginner spider crane project?

For starters, aim for 6-10 meters, like YILU’s CL2.0 or CL3.0. It handles most indoor lifts without overwhelming new users.

Q2: How does weather impact spider crane boom performance?

Wind over 5 levels can sway long booms, cutting capacity. YILU models have gradeability for slopes, but always check forecasts—I’ve skipped jobs in storms.

Q3: Can I extend a spider crane boom beyond factory specs?

No way—it’s risky. Stick to max like 18 meters on CL8.0. Add a fly jib if needed, but consult YILU for safe mods.
