Max platform height
3m/3.9m/4.8m
3-7m Mini Scissor Lift
INTERESTED IN OUR PRODUCTS?
contact us

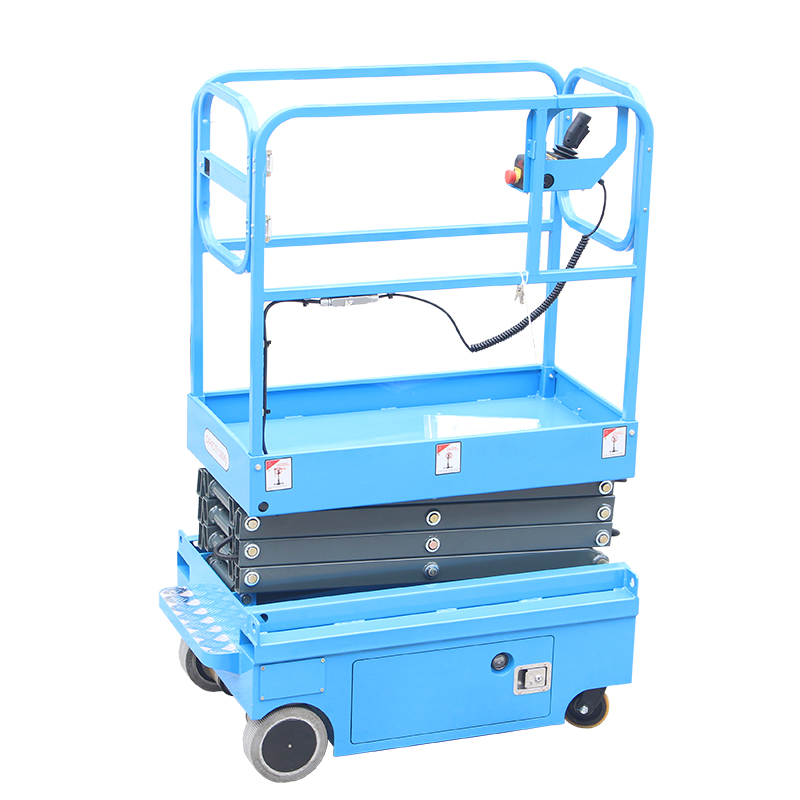

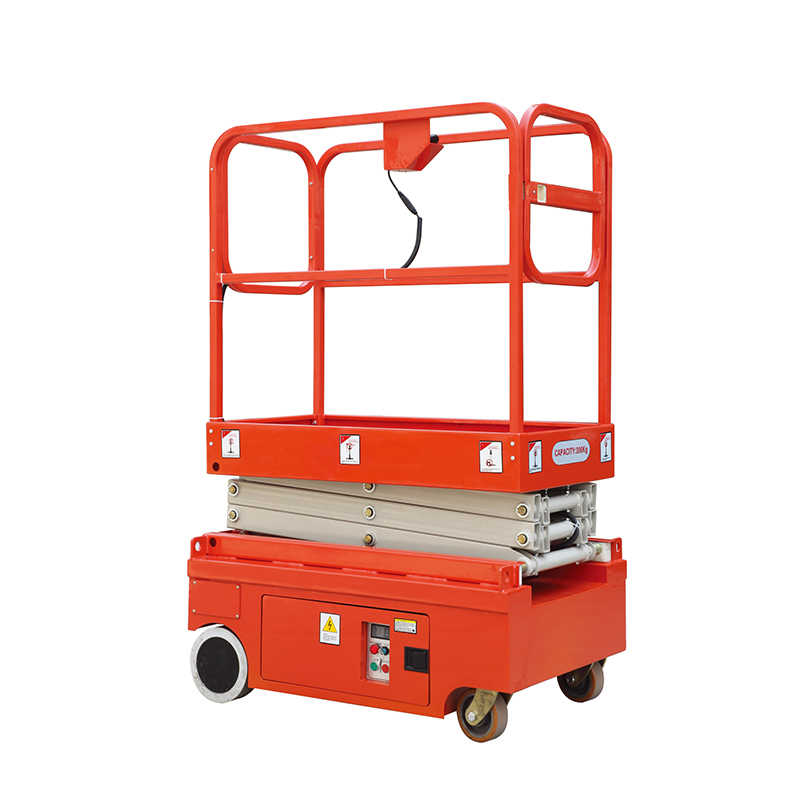

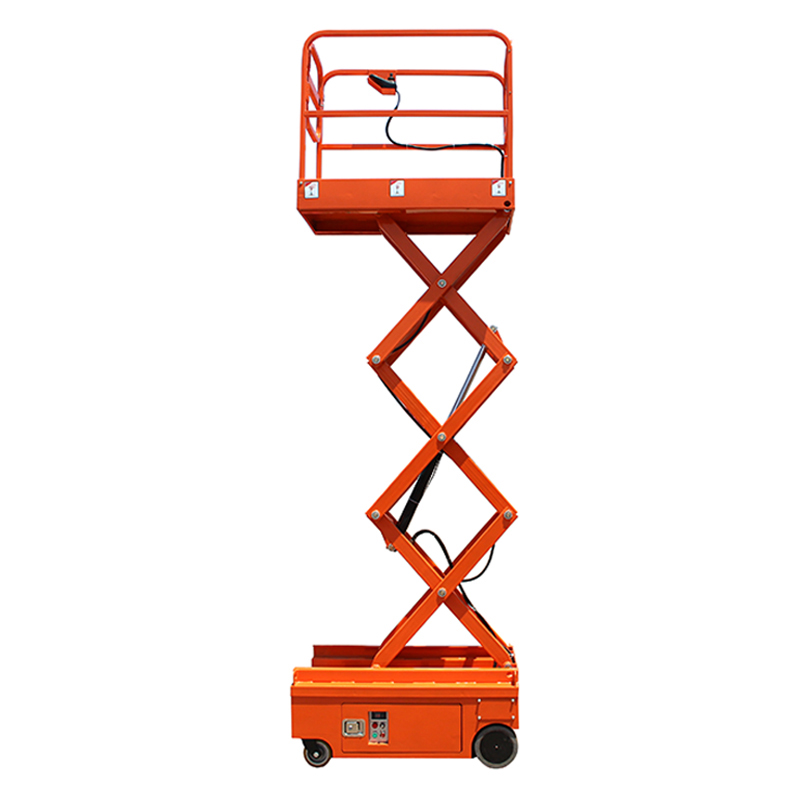

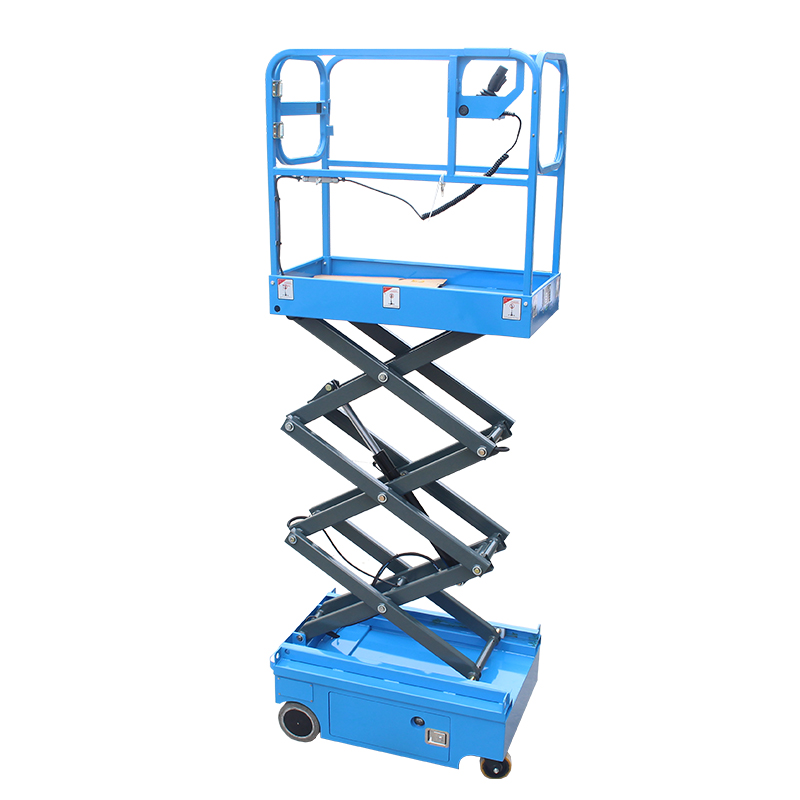

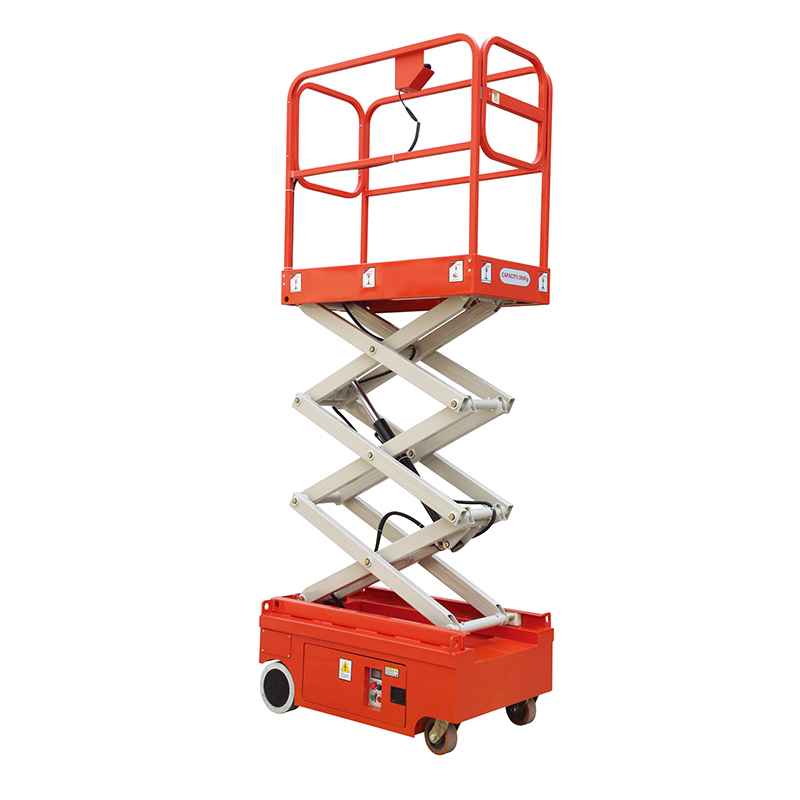

Full Electric Mobile Mini Scissor Lift
YILU Full Electric Mini Scissor Lift is a highly efficient and practical equipment. It presents lifting heights of 3m, 3.9m, and 4.8m, with a maximum load capacity of 300 kilograms. This compact device is designed to fit through narrow doorways and aisles, facilitating its use in various restricted spaces. The self-drive system allows for easy maneuvering on site from the stowed platform. Non-marking tyres ensure no damage to the floor. It is an excellent solution for indoor applications such as warehouse stocking, maintenance work, and retail store setup. With its reliable performance and space-saving features, it offers great convenience and flexibility, enhancing work efficiency and productivity while minimizing space occupation.
- Specs Table
|
Model Type |
|
GTJZ5.0 |
GTJZ5.9 |
GTJZ6.8 |
|
Maximum working height |
mm |
5000 |
5900 |
6800 |
|
Maximum platform height |
mm |
3000 |
3900 |
4800 |
|
Lifting capacity |
kg |
300 |
300 |
300 |
|
Platform size |
mm |
1170×600 |
1170×600 |
1170×600 |
|
Minimumground clearance |
mm |
60 |
60 |
60 |
|
Wheel base |
mm |
990 |
990 |
990 |
|
Driving Motor |
v/kw |
2×24/0.4 |
2×24/0.4 |
2×24/0.4 |
|
Lifting Motor |
v/kw |
24/0.8 |
24/0.8 |
24/0.8 |
|
Running speed (platform Stowed) |
km/h |
4 |
4 |
4 |
|
Running speed (platform Elevated) |
km/h |
0.8 |
0.8 |
0.8 |
|
Battery |
V/Ah |
2×12/60 |
2×12/60 |
2×12/60 |
|
Charger |
V/A |
24/10 |
24/10 |
24/10 |
|
Maximum climbing ability |
% |
10-15 |
10-15 |
10-15 |

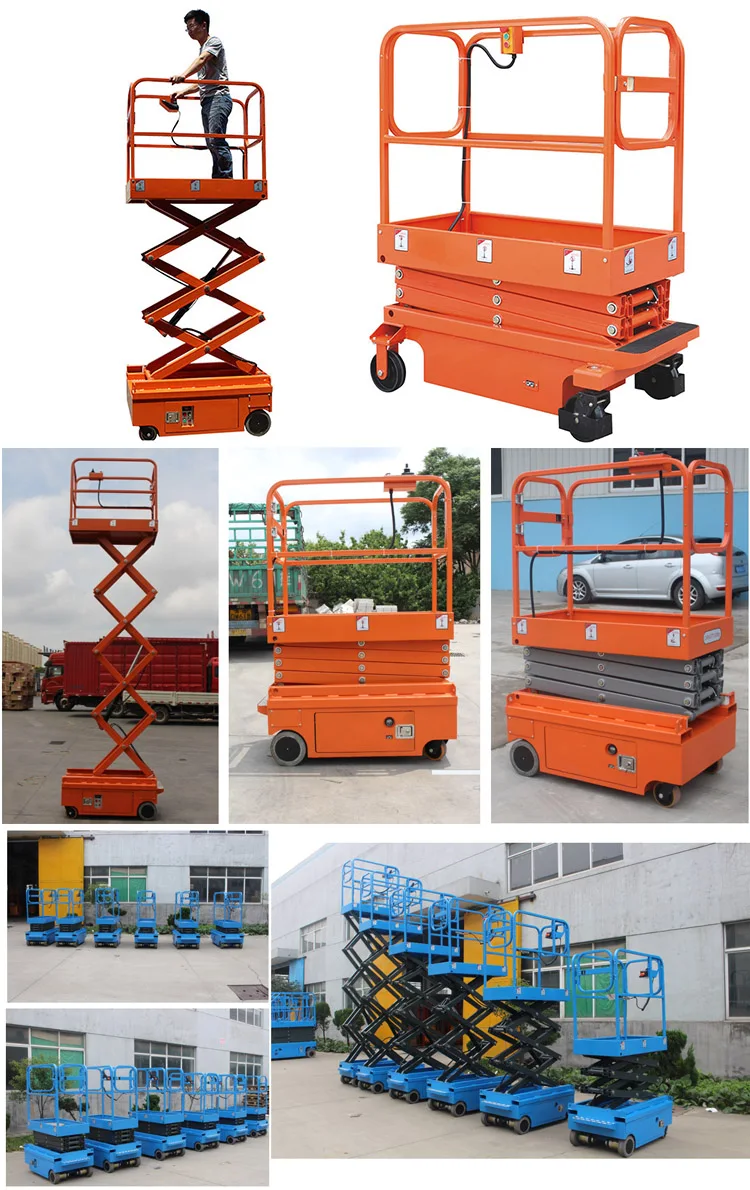

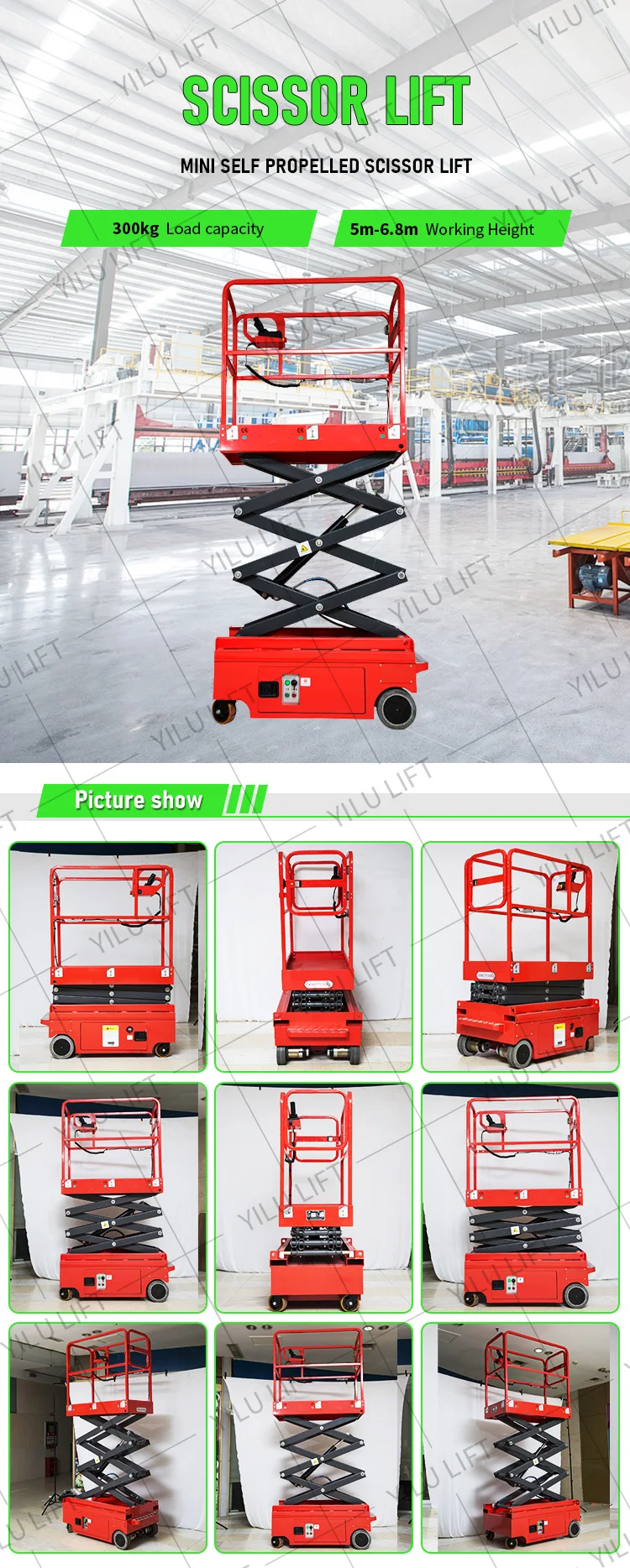

- Details Photos
- Our Team
FAQ
| 1: How to place an order? | |
| Answer: Please tell us your detailed requirements (including your product materials, product dimensions and product weight), and we will send you detailed parameters and quotations as soon as possible. | |
|
|
| Answer: It depends on your requirements of the equipment and shipment terms (FOB, CIF, CFR, EXW, etc.) | |
| 3: How to make the payment? | |
| Answer: We accept wire transfer; letter of credit; Alibaba trade guarantee. | |
| 4: What is the lead time? | |
| Answer: For the standard product, the delivery time is 7 days. For customized orders with no stock, we need to determine the delivery time according to the situation, usually it’s 20-30days. If you need urgent items, please contact us. | |
| 5: About the warranty | |
| Answer: Our machines enjoy a complete 1-year warranty. Lifelong technical support via email or video. | |
| 6: About the guarantee | |
| Alibaba will protect your order. We are Alibaba verified manufacture. We have Alibaba trade guarantee. | |
| 7: Mode of transportation | |
| Answer: You can choose sea, air, rail transportation. |
