Capacity
800kg

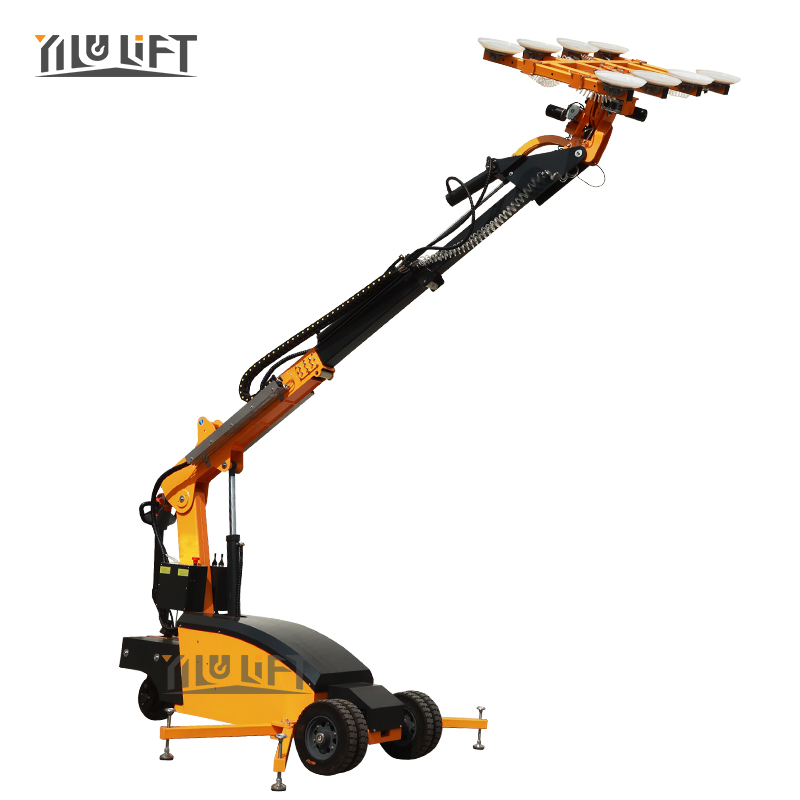

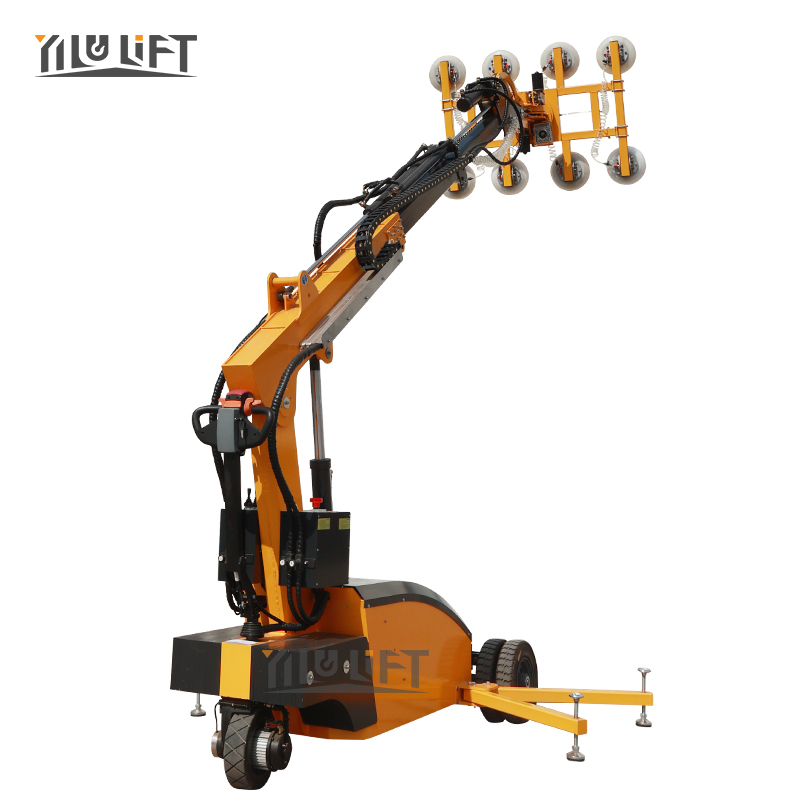

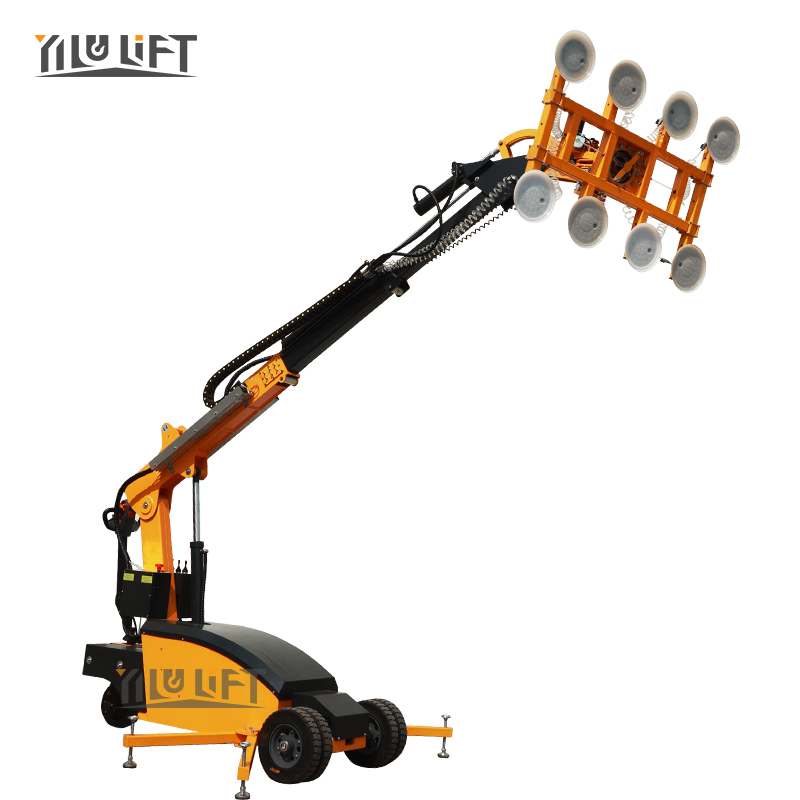

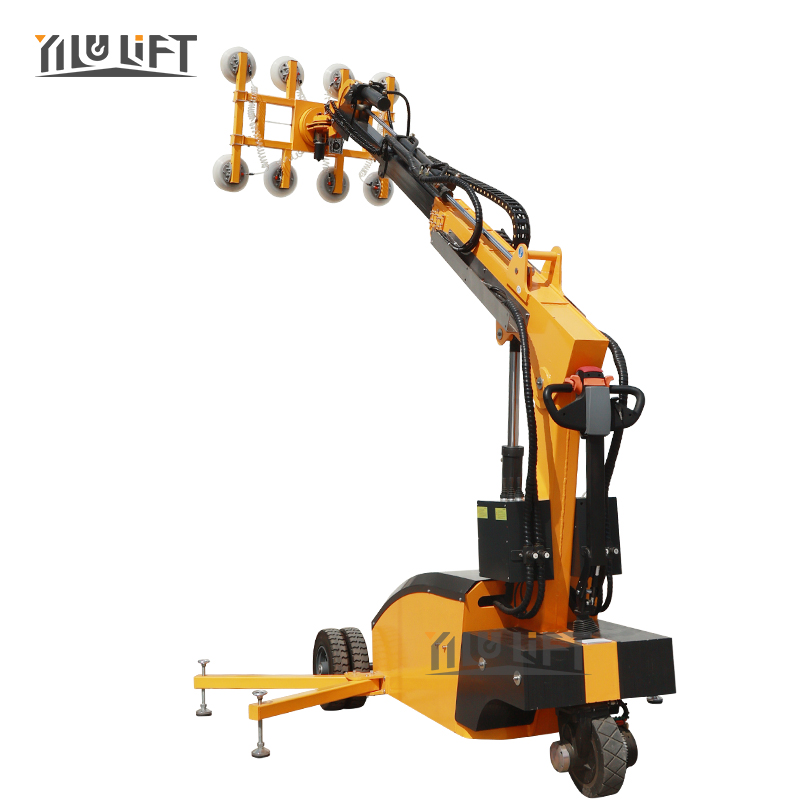

300-800kg LD Series Glass Vacuum Lifter
INTERESTED IN OUR PRODUCTS?
contact us
Full Electric Remote Control 800KG 1000KG Vacuum Lifter Robot with Dual Circuit
| Model Type | GL-LD-300 | GL-LD-400 | GL-LD-500 | GL-LD-600 | GL-LD-800 | |
| Load Capacity | 300kg (arm retract) | 400kg (retract) | 500kg (retract) | 600kg (retract) | 800kg (retract) | |
| 150kg (extend) | 200kg (extend) | 250kg (extend) | 300kg (extend) | 400kg (extend) | ||
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 5000mm | |
| Suction Cups | 4pcs,Ø300mm | 4pcs,Ø300mm | 6pcs,Ø300mm | 6pcs,Ø300mm | 8pcs,Ø300mm | |
| Deep Cycle Battery | 2x12V/80AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH | |
| Battery Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | |
| Drive Motor | 24V/1200W | 24V/600W | 24V/900W | 24V/900W | 24V/1200W | |
| Lifting Motor | 24V/2000W/5L | 24V/2000W/5L | 24V/2000W/5L | 24V/2000W/5L | 24V/2000W/12L | |
| Chassis L*W | 2660*810mm | 2660*810mm | 2800*810mm | 2800*810mm | 2800*810mm | |
| N.W/G.W | 1100/1150kg | 1280/1330kg | 1300/1350kg | 1400/1450kg | 1600/1650kg | |
| Packing Size | 2560x1030x1700mm | 2580x1050x1700mm | 300x1250x2300mm | |||
| Movement | Automatic (4kinds) | 1. Pad frame vertical up/down 180°automatic | ||||
| 2. Boom in/out 610/760mm automatic | ||||||
| 3. Powered arm lify up/down automatic | ||||||
| 4. Lateral side shift 100mm automatic | ||||||
| Manual (2kinds) | 5. Pad frame tilt left/right 90° manual (Pls look at Optional 1. automatic turn lift/right) | |||||
| 6. Pad frame rotation 360°manual (Pls look at Optional 2. automatic rotation 360°) | ||||||
| Optional(Extra charged) | Optional1>Need pad frame automatic tilt left/right 90° | |||||
| Optional2>Need pad frame automatic rotation 360° | ||||||
| Optional3>Need proportional valve remote control with lifting speed is adjustable | ||||||
| Optional4>Use maintenance free lead acid battery | ||||||
