8T 10T 12T Mini Crawler Spider Crane With Wireless Remote Control
Crawler Mini Spider Crane
| Model Type | CL1.2 | CL2.0 | CL3.0 | CL5.0 | CL8.0 | CL10.0 | CL12.0 | CL14.0 |
| Lifting Capacity | 1.2 ton | 2 ton | 3.0 ton | 5.0 ton | 8.0 ton | 10.0 ton | 12.0 ton | 14.0 ton |
| Max Lifting Height | 5.8m x 0.8t | 6m x 0.3t | 10m x 0.8t | 16m x 1.5t | 18m x 1.5t | 21m x 0.6t | 24.5m x 0.9t | 24.5m x 2t |
| Max Radius | 5m x 0.3t | 6.8 x 0.8t | 9m x 0.2t | 15mx1t | 16.5m x 0.2t | 20m x 0.2t | 23×0.2t | 23×1.5t |
| Hook rising speed | 0-8m/min | 0-10m/min | ||||||
| Wire Rope | Φ8mm×35m | Φ8mm×35m | Φ8mm×45m | Φ10mm×120m | Φ10mm | Φ11mm×100m | Φ12mm×80m | Φ12mm×80m |
| Boom form | 4 | 5 | 5/6 | 5/6 | 5/6 | 5/None | 5/6 | 5/6 |
| Boom length | 5.8m | 6.8m | 9.2m/9.2+1.7m | 16m/16+3m | 18m/18+3.5m | 21m/None | 24.5m/24.5+4m | 24.5m/24.5+4m |
| Boom Angle/Time | 0-75°/13sec | 0-75°/13sec | 0-75°/13sec | 0-75°/13sec | 0-75°/13sec | 0-75°/13sec | 0-75°/13sec | 0-75°/13sec |

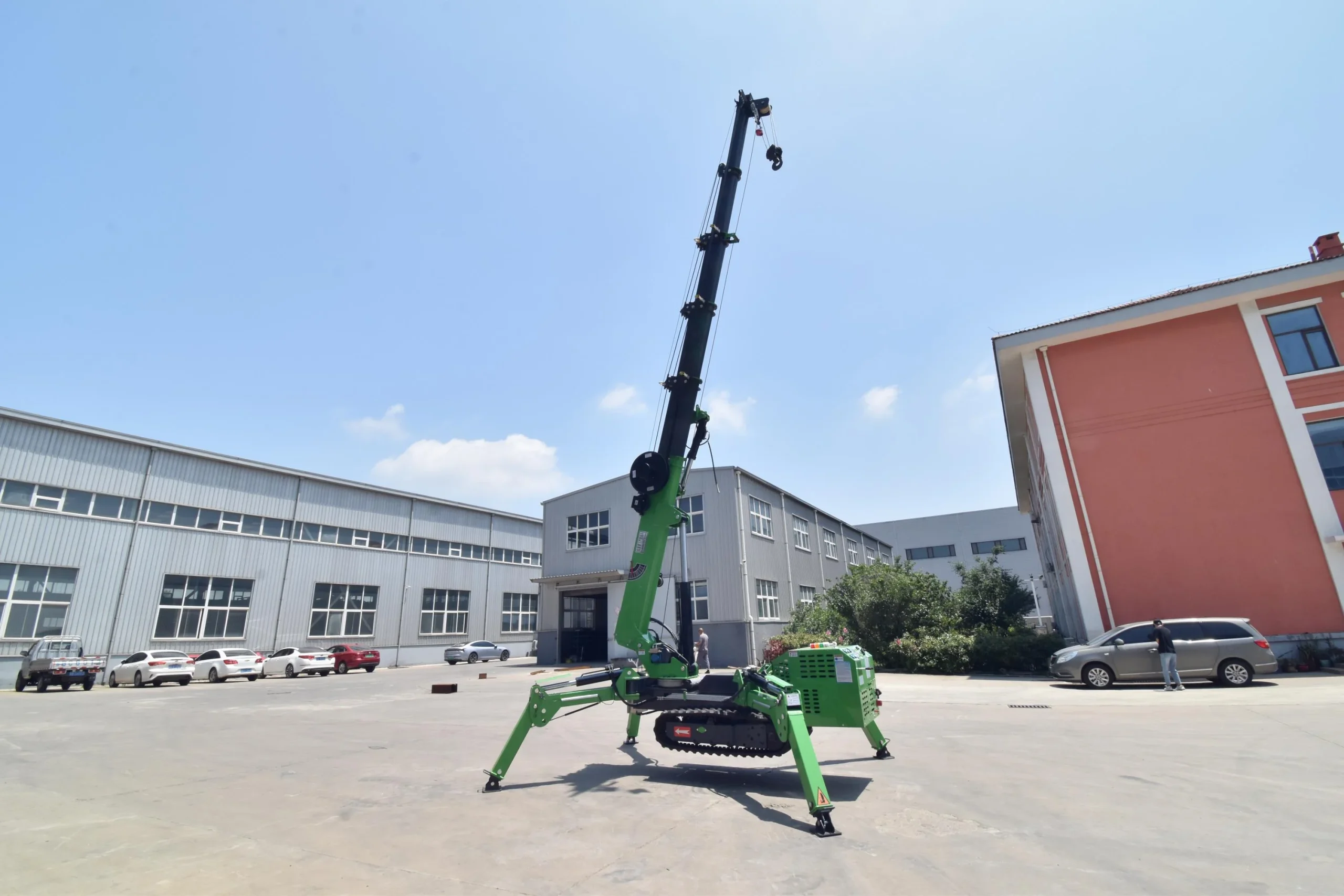

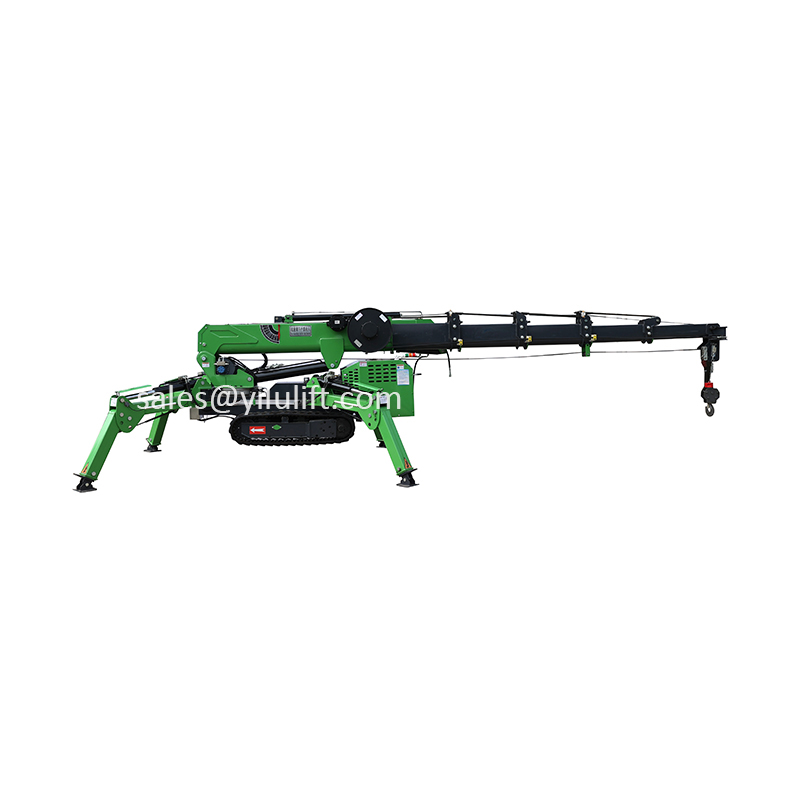

Complete with some of the same features on the smaller spider crane models, such as an Electronic Display Load Moment Indicator, On-board Self Diagnostic Computer System, and a Full Function Wireless Remote, this mini-crawler is designed for ease of use. It’s mounted on dual tracks and It has the ability to rotate 360 degrees in place, making it easy to maneuver into and out of tight spots. It comes standard with a Quick Disassemble System allowing for the outriggers, boom, and frame assembly to be removed from the carrier to reduce the weight for transport or hoisting.
Mini spider crane is our most versatile. While popular among many industries, the spider crane is quickly becoming one of the most in demand glazing and construction tools to set glass and materials. Available models offer maximum lifting capacities of 1.2Ton 2Ton 3Ton 5Ton 8Ton 10Ton 12Ton 14Ton, Featuring a variable geometric footprint courtesy of adjustable outriggers allowing for set-up in tight spots such as hallways, balconies, or around obstacles, this mini crane acting as a glazing tool is tackling projects once thought impossible.
Commitment is a big word, and not to be taken lightly. With YILU LIFT our first commitment is to offer high quality products. The second promise is innovation. We are constantly developing new models as part of the spider crane family to better serve our customers unique needs. If you have a lifting need, we have a solution.
| 1: How to place an order? | |
| Answer: Please tell us your detailed requirements (including your product materials, product dimensions and product weight), and we will send you detailed parameters and quotations as soon as possible. | |
|
|
| Answer: It depends on your requirements of the equipment and shipment terms (FOB, CIF, CFR, EXW, etc.) | |
| 3: How to make the payment? | |
| Answer: We accept wire transfer; letter of credit; Alibaba trade guarantee. | |
| 4: What is the lead time? | |
| Answer: For the standard product, the delivery time is 7 days. For customized orders with no stock, we need to determine the delivery time according to the situation, usually it’s 20-30days. If you need urgent items, please contact us. | |
| 5: About the warranty | |
| Answer: Our machines enjoy a complete 1-year warranty. Lifelong technical support via email or video. | |
| 6: About the guarantee | |
| Alibaba will protect your order. We are Alibaba verified manufacture. We have Alibaba trade guarantee. | |
| 7: Mode of transportation | |
| Answer: You can choose sea, air, rail transportation. |
