Lifting material
glass, metal sheet

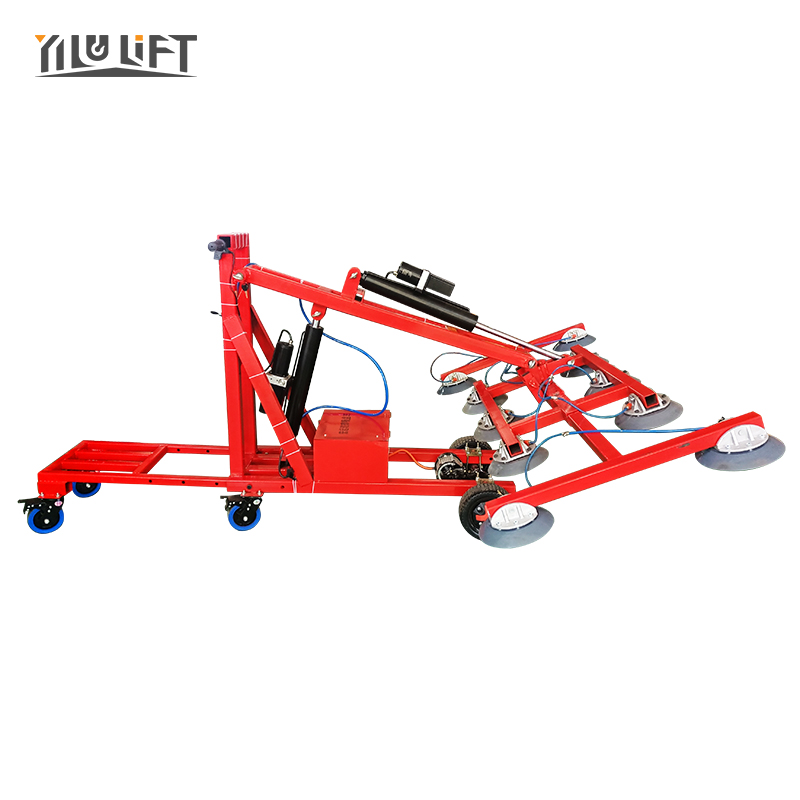

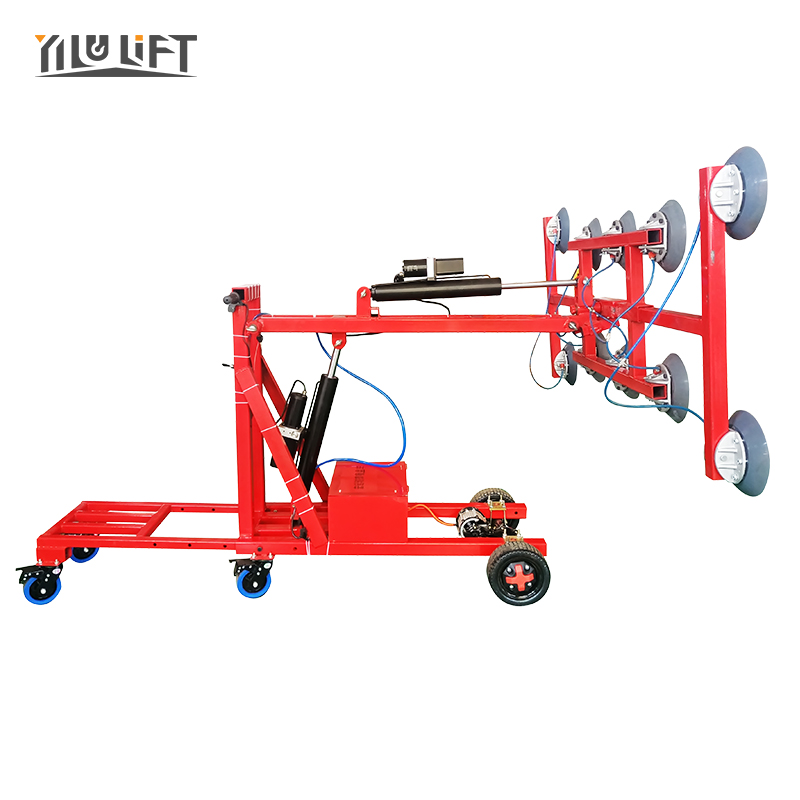

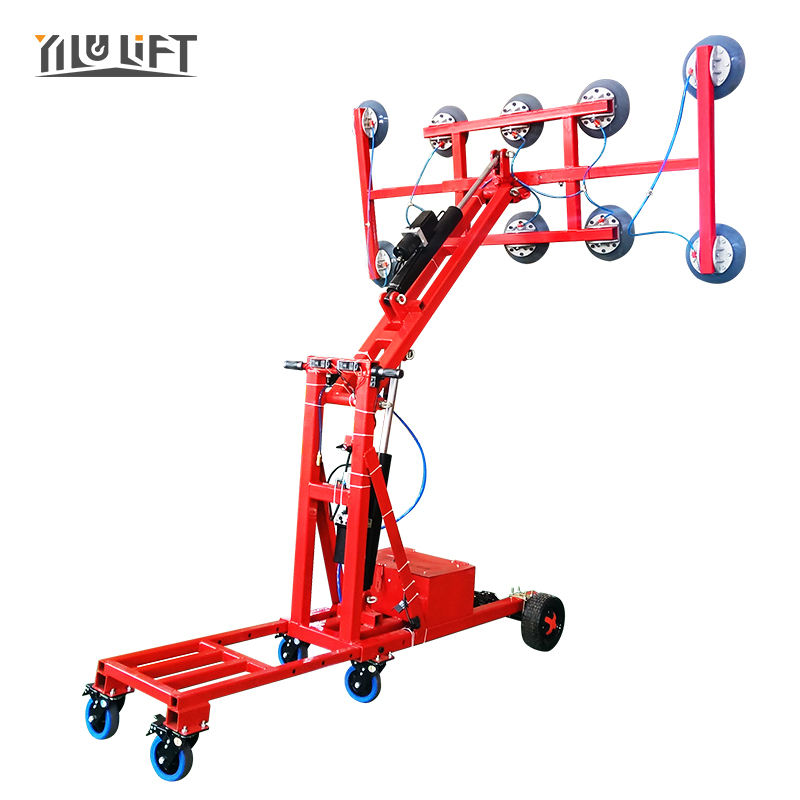

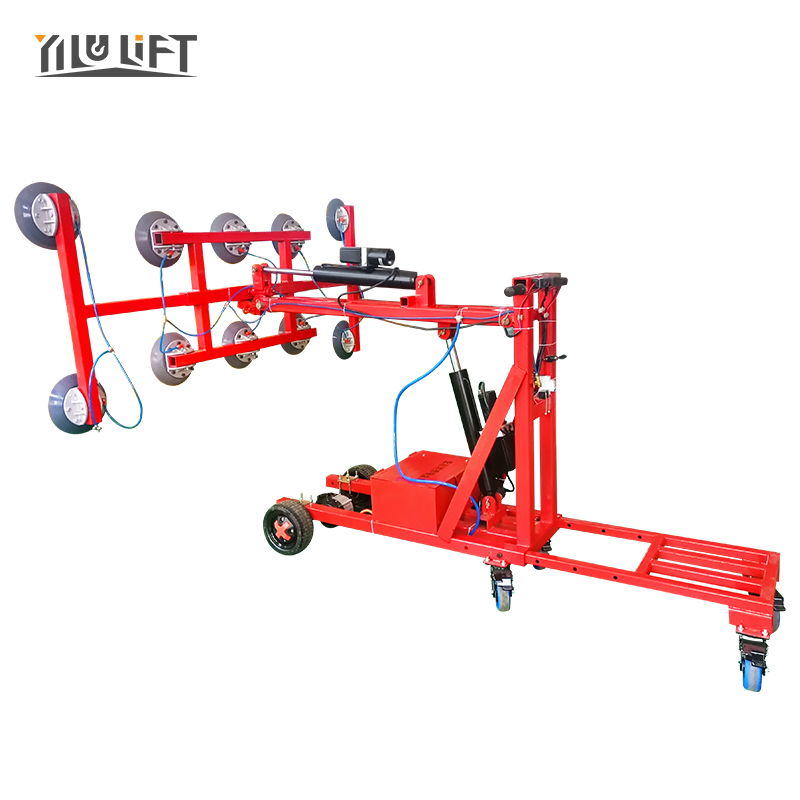

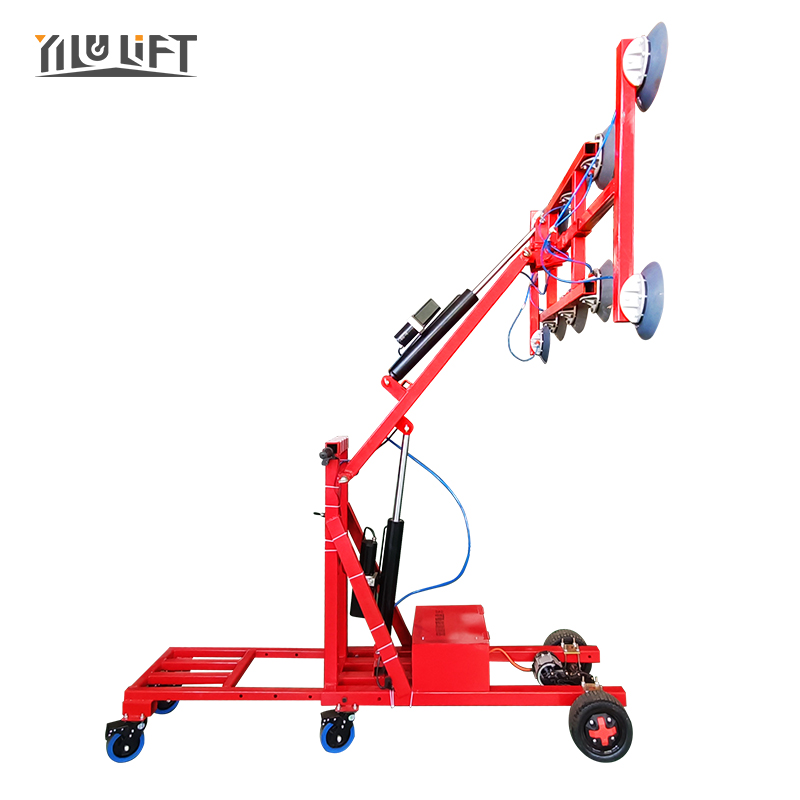

400-1600kg Simple Design Series Vacuum Lift
INTERESTED IN OUR PRODUCTS?
contact us
500KG 1000KG Full Electric Vacuum Suction Cups Lifter Robot for Glass Installation
| Model Type | GL-SD-400 | GL-SD-600 | GL-SD-800 | GL-SD-1000 | GL-SD-1300 | GL-SD-1600 |
| Load Capacity (kg) | 400 | 600 | 800 | 1000 | 1300 | 1600 |
| Suction Cups Qty | 4 | 6 | 8 | 10 | 13/14 | 16 |
| Suction Cups Diameter (mm) | 250 | 250 | 250 | 250 | 250 | 250 |
| Battery (v) | 12 | 48 | 48 | 48 | 48 | 48 |
| Degree Rotation (degree) | 360 | |||||
| Device | Detachable | |||||
| Control | Manual control | |||||
| Warranty (year) | 1 | |||||
| Universal Wheel (pcs) | 4 | 4 | 6 | 6 | 6 | 6 |
| Core Components | Motor, Pressure vessel, Pump | |||||
| Color | Customization | |||||
| Safety Guarantee System | After the power is off, the pressure can be maintained | |||||
| Dimension(L*W*H) (mm) | 2350*800*800 | 1300*1300*700 | 2000*1500*700 | 2200*1800*800 | / | 2200*1800*800 |
| Net Weight (kg) | 250 | 330 | 350 | 500 | / | 800 |
