Load Capacity
182-2000kg

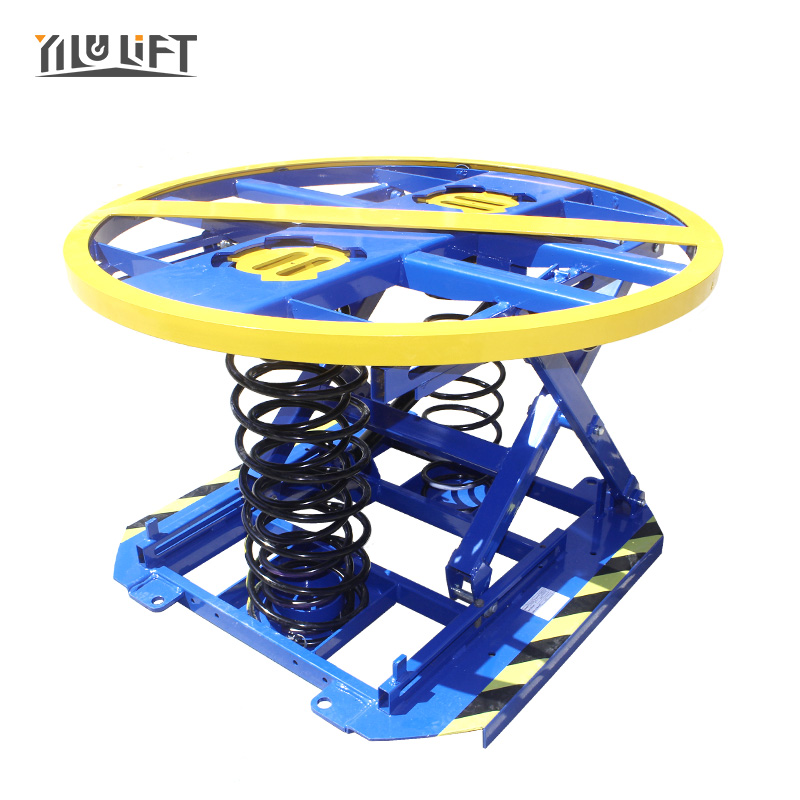

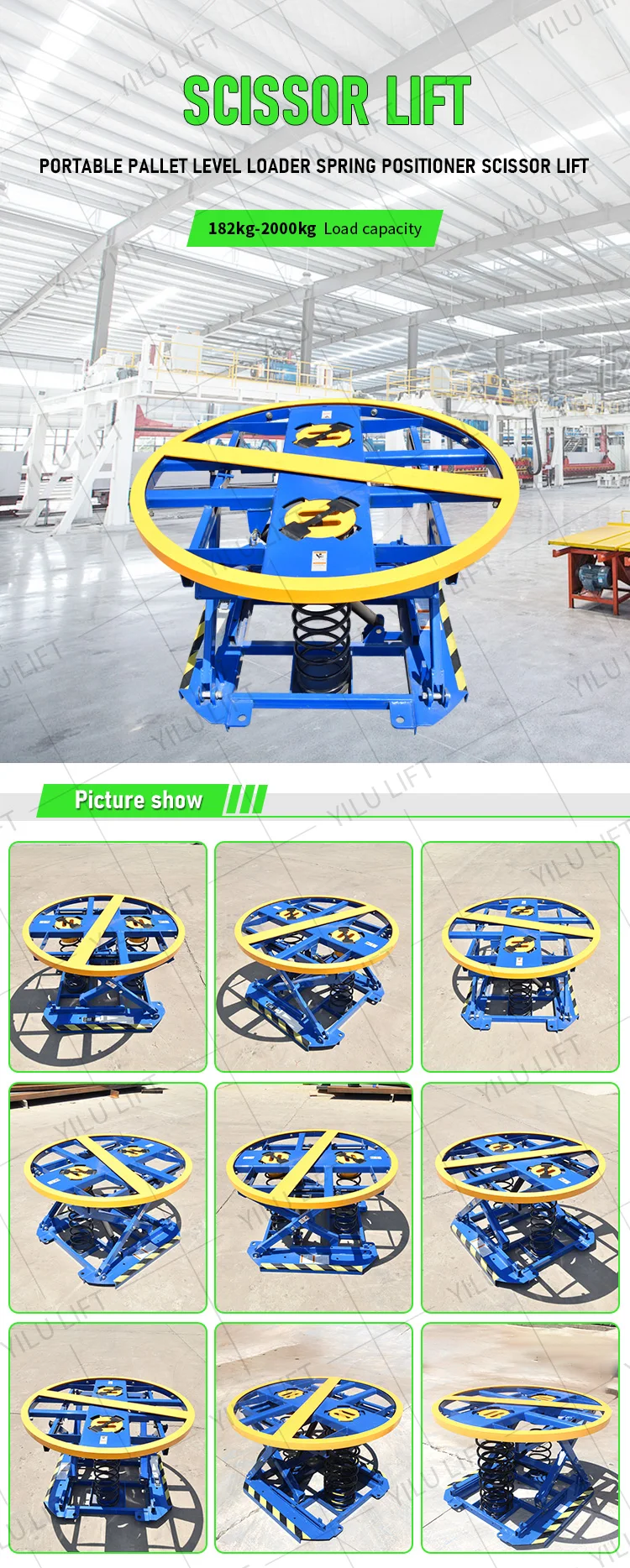

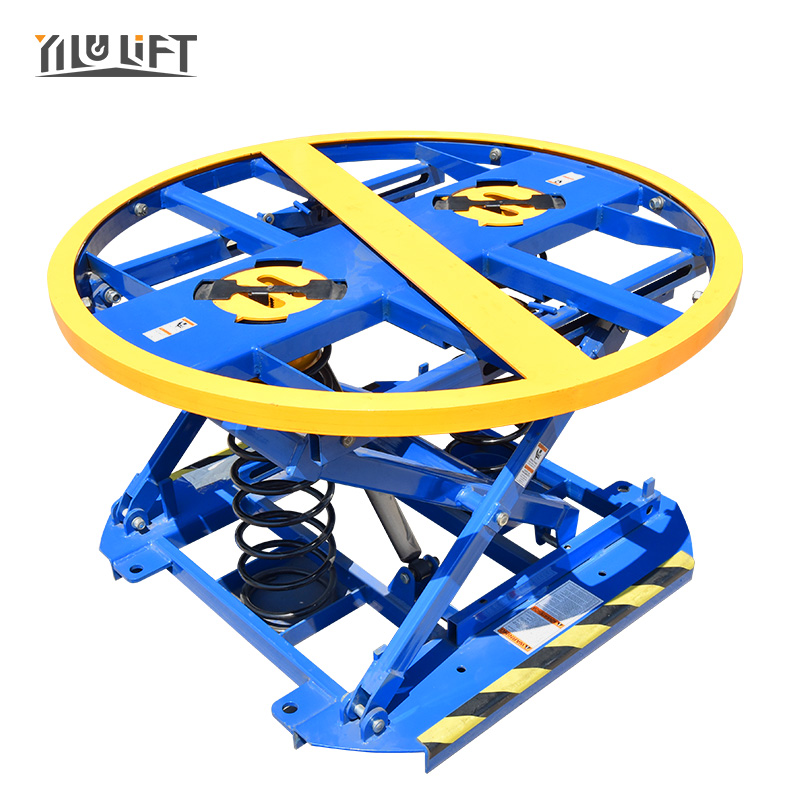

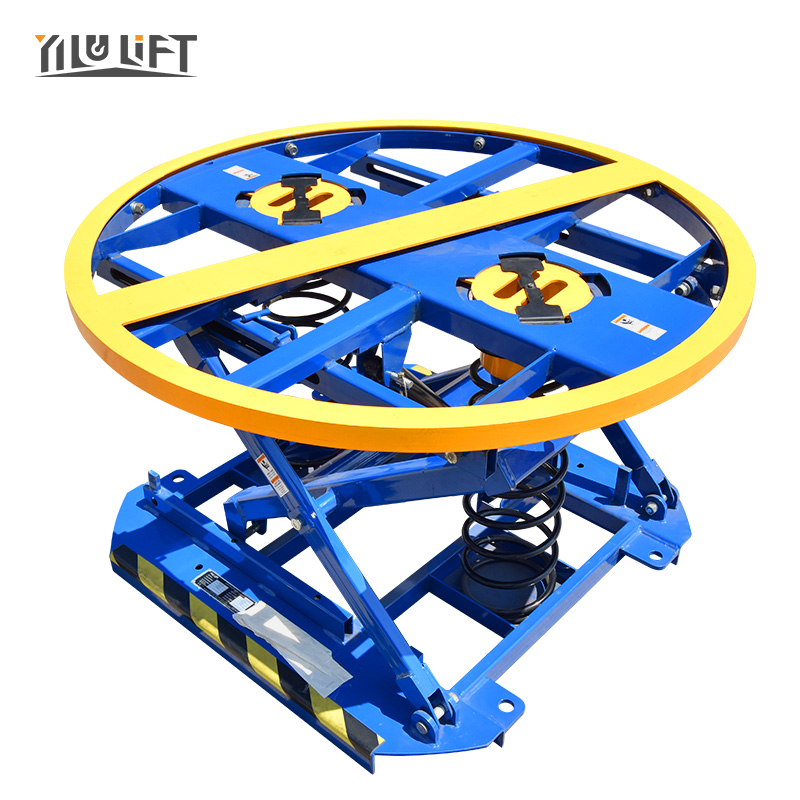

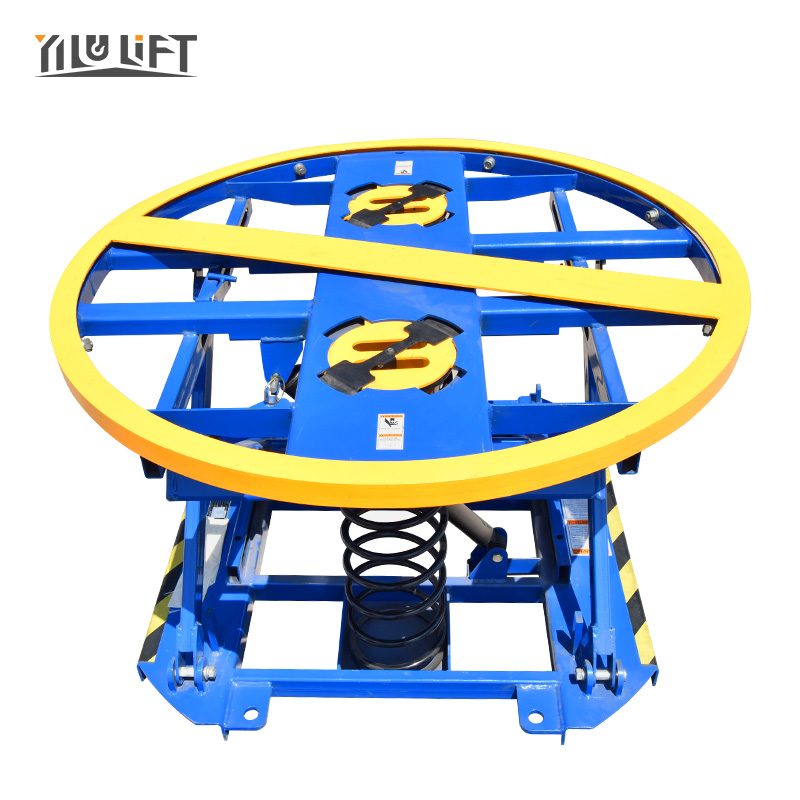

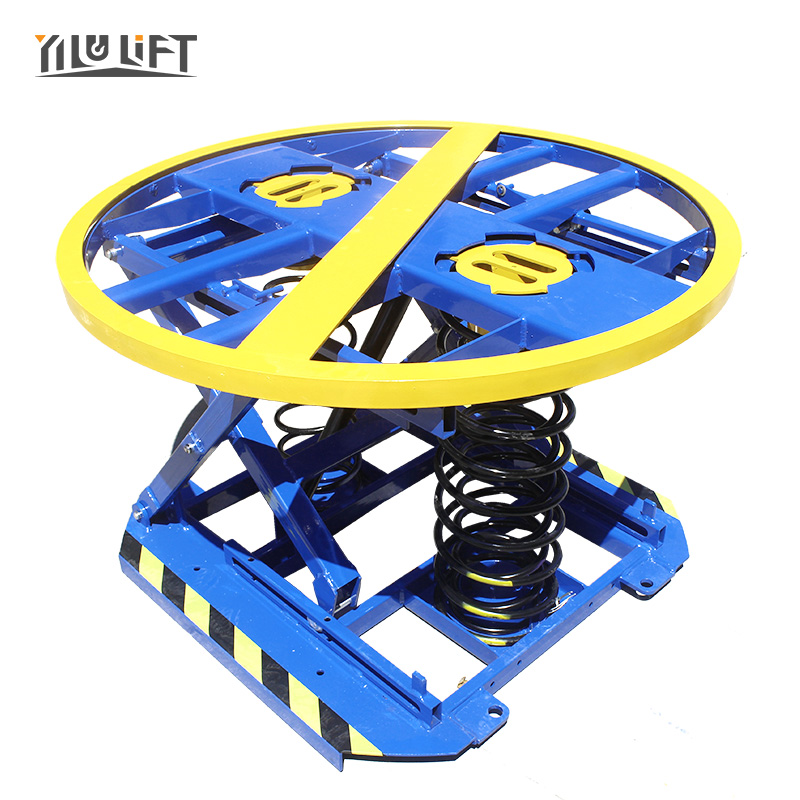

182-2000kg Pallet Positioner
INTERESTED IN OUR PRODUCTS?
contact us
Electric Lifting Equipment Hydraulic Pallet Spring Scissor Lift Table
YILU Brand Scissor Lift Tables are high quality electronic hydraulic scissor lifts up to American standard ANSI/ASME and Europe standard EN1570. Standard model types load capacity are from 1000kg to 4000kg.Lifting height from 205mm to 4140mm. Please check if the following standard model types meet your demands.If not,just tell us required platform size,load capacity and lifting height.We’ll customize it.
l Using spring self-balancing design, make the pallet height always at the most convenient height.
l The connecting rod structure is designed to keep the plane level when the load is not uniform.
l Equipped with high quality bearings, 360-degree rotating platform enables workers to quickly and quickly pack and assemble their work.
- Specs Table
|
Model |
HS2000A |
|
Load Capacity (kg) |
182-2000kg |
|
Max. Pallet Size(mm) |
1270*1270*1820 |
|
Base Size(mm) |
920*933 |
|
Lowered Platform Height(mm) |
242 |
|
Max Platform Height(mm) |
705 |
|
Rotary Platform Diameter(mm) |
1108 |
|
Net Weight(kg) |
173 |
|
Construction |
Steel |
|
Operation |
Spring Lift |
- Advantages
1. Automatically maintain a load at the ideal height for manual loading and uploading.
2. Automatically maintain the top pf the load at the working height.
3. Includes a steel scissor lift mechanism and at least one large compression spring.
4. The springs are chosen to match the weight and height of a fully loaded pallet.
5. With a shock absorber to eliminate tendency for the load to bounce on the springs.
Compact structure can be modularized into a small space;With a new electric propulsion system,ride provides more flexibility,more environmentally friendly exhaust emissions.Automatic hole protection system, safe and reliable;
- Safety Precautions:
1. Explosion-proof valves 2. Spillover valve
3. Emergency decline valve 4. Overload protection locking device.
5. Emergency decline valve 6. Automatic Safety sensor:stop when come across barriers.
- Our Team
- FAQ
| 1: How to place an order? |
| Answer: Please tell us your detailed requirements (including your product materials, product dimensions and product weight), and we will send you detailed parameters and quotations as soon as possible. |
| 2: What is your price? |
| Answer: It depends on your requirements of the equipment and shipment terms (FOB, CIF, DDP) |
| 3: How should I pay? |
| Answer: We accept wire transfer; letter of credit; Paypal; Wetern Union. |
| 4: What is the delivery time? |
| Answer: For the standard product, the delivery time is 7 days.For customized orders with no stock, we need to determine the delivery time according to the situation, if you need urgent items, please contact us. |
| 5: About the warranty |
| Answer: 1-year warranty. Lifelong technical support via email or video. |
| 6: About the guarantee |
| Answer: Alibaba will protect the order. We have trade assurance. |
| 7: Mode of transportation |
| Answer: You can choose sea, air, rail transportation. |
