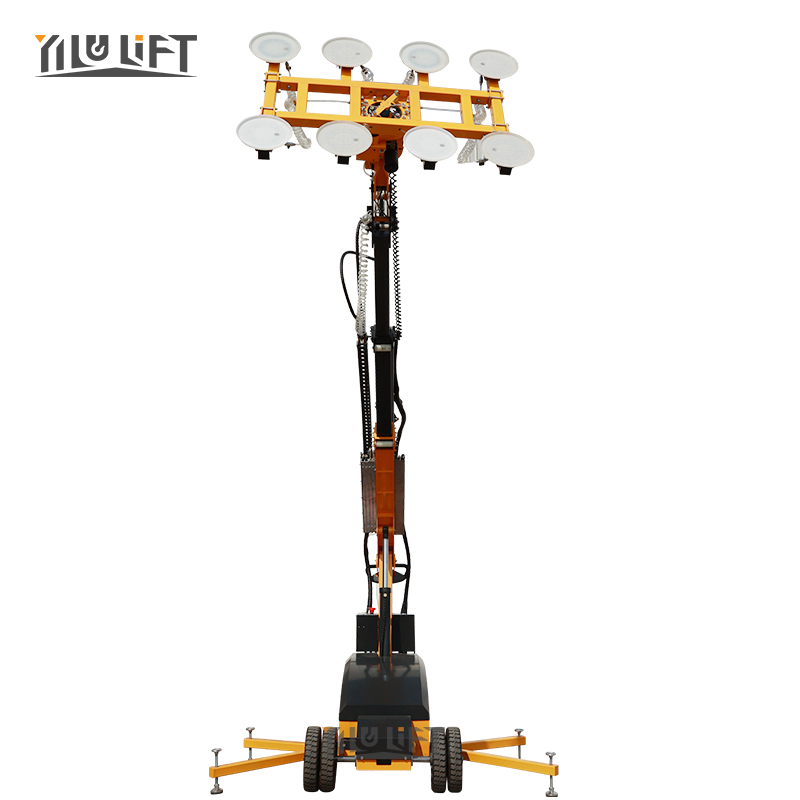

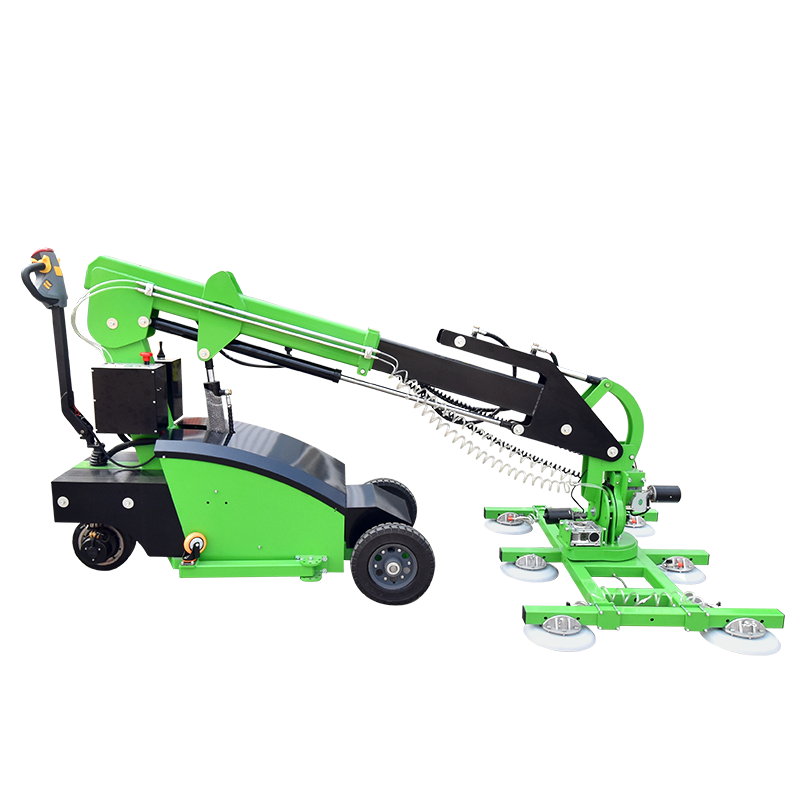

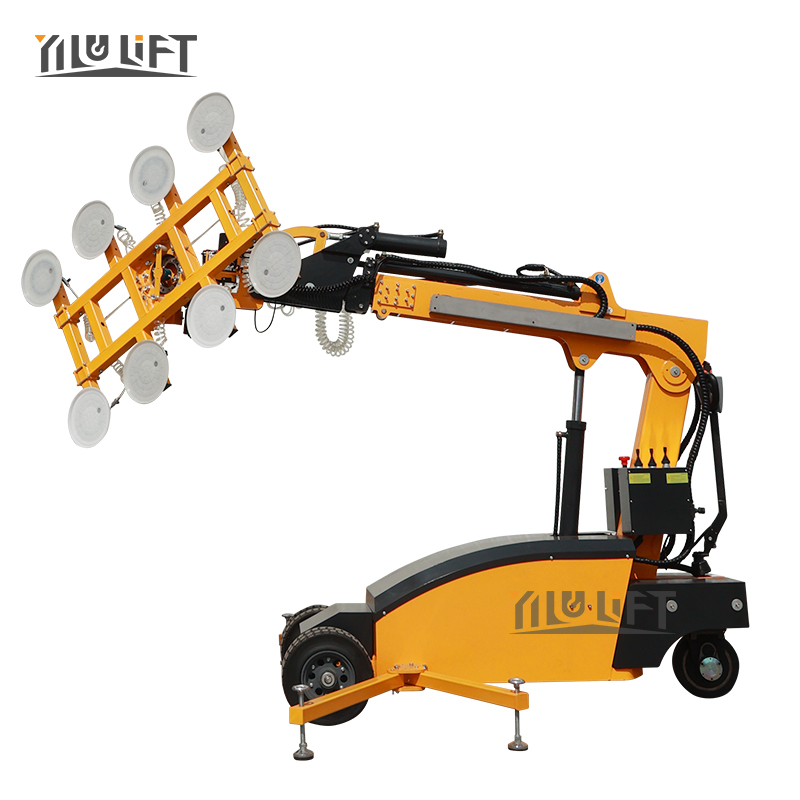

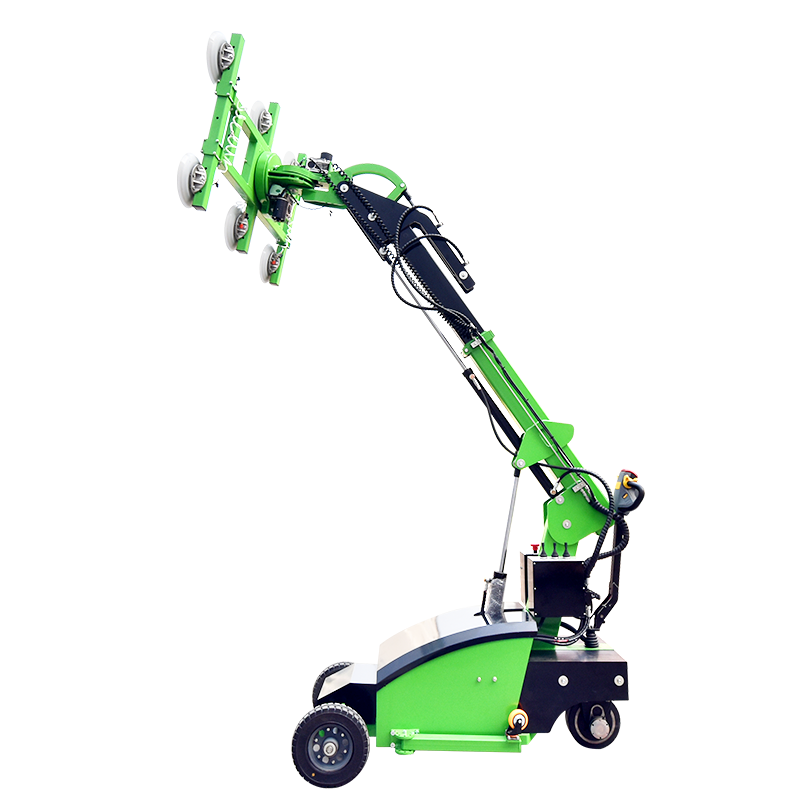

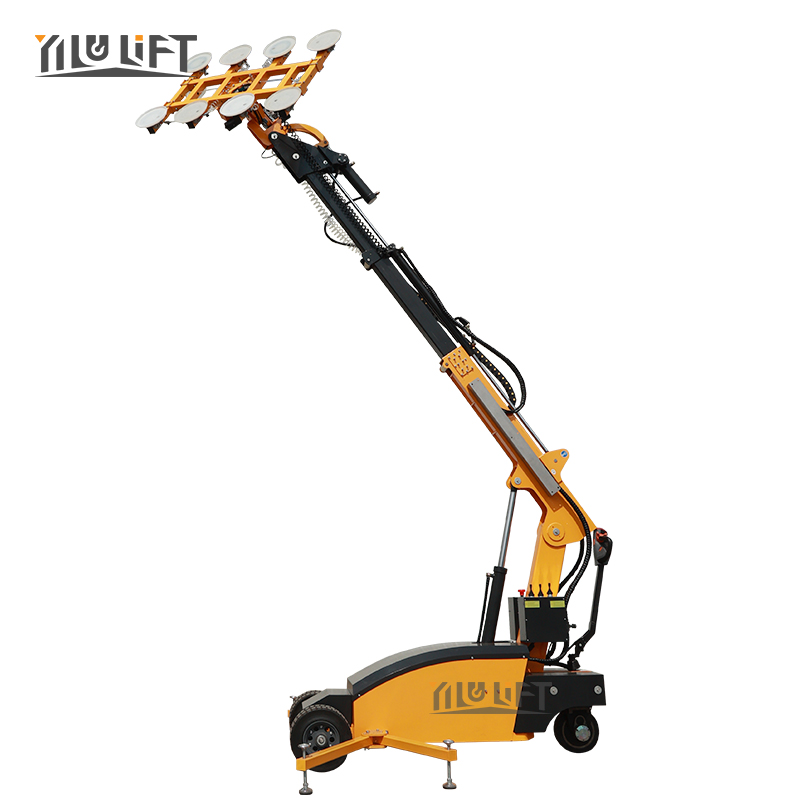

Full Electric Remote Control 800KG 1000KG Vacuum Lifter Robot
GL-LD series Vacuum Lifter: small size, easy to transport.
Special design for handling difference kind of heavy plates, such as steel, glass, granite, marble and so forth, with vacuum suction caps.
Here are the main parameters.If the following parameters can not meet your needs, we can also customize according to your requirements.
| Model Type | GL-LD-300 | GL-LD-400 | GL-LD-500 | GL-LD-600 | GL-LD-800 | |
| Load Capacity | 300kg (arm retract) | 400kg (retract) | 500kg (retract) | 600kg (retract) | 800kg (retract) | |
| 150kg (extend) | 200kg (extend) | 250kg (extend) | 300kg (extend) | 400kg (extend) | ||
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 5000mm | |
| Suction Cups | 4pcs,Ø300mm | 4pcs,Ø300mm | 6pcs,Ø300mm | 6pcs,Ø300mm | 8pcs,Ø300mm | |
| Deep Cycle Battery | 2x12V/80AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH | |
| Battery Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | |
| Drive Motor | 24V/1200W | 24V/600W | 24V/900W | 24V/900W | 24V/1200W | |
| Lifting Motor | 24V/2000W/5L | 24V/2000W/5L | 24V/2000W/5L | 24V/2000W/5L | 24V/2000W/12L | |
| Chassis L*W | 2660*810mm | 2660*810mm | 2800*810mm | 2800*810mm | 2800*810mm | |
| N.W/G.W | 1100/1150kg | 1280/1330kg | 1300/1350kg | 1400/1450kg | 1600/1650kg | |
| Packing Size | 2560x1030x1700mm | 2580x1050x1700mm | 300x1250x2300mm | |||
| Movement | Automatic (4kinds) | 1. Pad frame vertical up/down 180°automatic | ||||
| 2. Boom in/out 610/760mm automatic | ||||||
| 3. Powered arm lify up/down automatic | ||||||
| 4. Lateral side shift 100mm automatic | ||||||
| Manual (2kinds) | 5. Pad frame tilt left/right 90° manual (Pls look at Optional 1. automatic turn lift/right) | |||||
| 6. Pad frame rotation 360°manual (Pls look at Optional 2. automatic rotation 360°) | ||||||
| Optional(Extra charged) | Optional1>Need pad frame automatic tilt left/right 90° | |||||
| Optional2>Need pad frame automatic rotation 360° | ||||||
| Optional3>Need proportional valve remote control with lifting speed is adjustable | ||||||
| Optional4>Use maintenance free lead acid battery | ||||||
Advantages
1. Integrated control system secures quick and automatic positioning vertically and horizontally by a single push on a button.
2. DC24V reliable actuators for lifting, extension and tipping. efficient and precise. Self propelling, various circuit vacuum suction.
3. Attractive price, staff saving, strong improvement of working environment.
4. YILU LIFT vacuum lifter are dealt with shot blasting and stoving varnish, high anti-corrosion function.
5. High quality pump station make the vacuum lifter lifts and falls very stably.
6. Heavy duty cylinders with drainage system and check valve to stop the vacuum lifter lowering in the case of hose burst.
7. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
8. Brief structure make it much easier to operate and maintain.
9. Up to American standard ANSI/ASME and Europe standard EN1570.
Multifunction Hanle:
Vacuum Control Panel:
Hydraulic Controls:

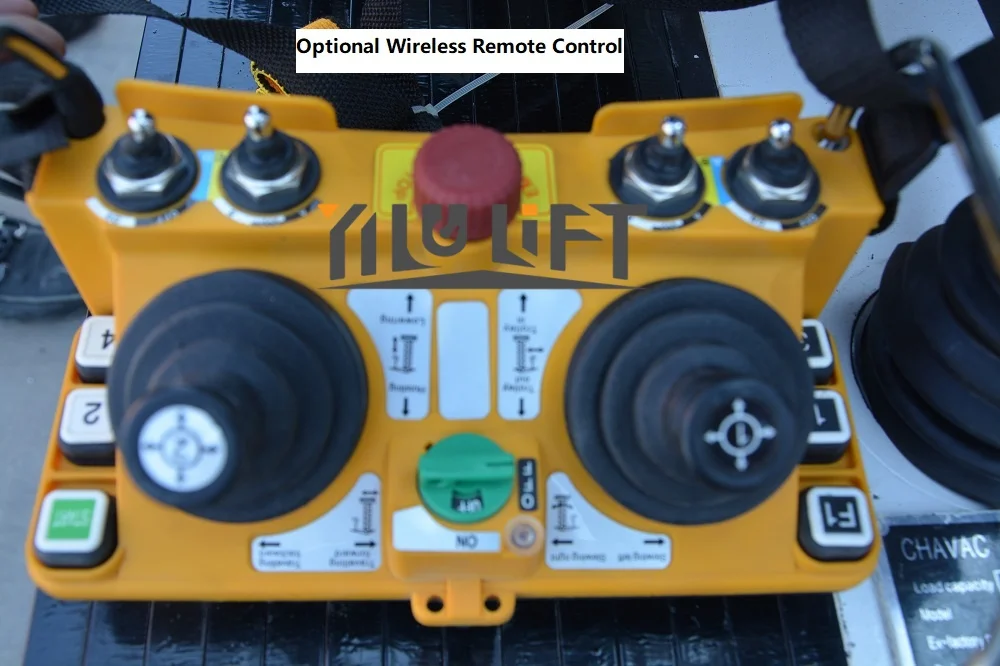

Optional Wireless Remote Control:
High Quality USA Silicon Cups:
Optional Off-road Tires:
Commitment is a big word, and not to be taken lightly. With YILU LIFT our first commitment is to offer high quality products. The second promise is innovation. We are constantly developing new models as part of the vacuum lifter family to better serve our customers unique needs. If you have a lifting need, we have a solution.
