Capacity
700KG 900KG 1200KG
Floor Crane
INTERESTED IN OUR PRODUCTS?
contact us

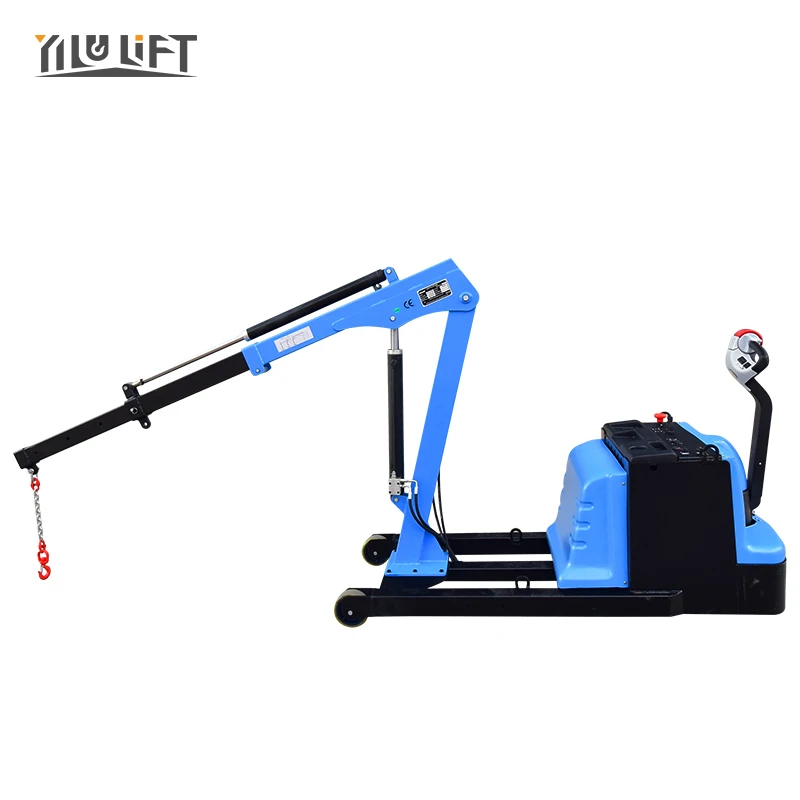

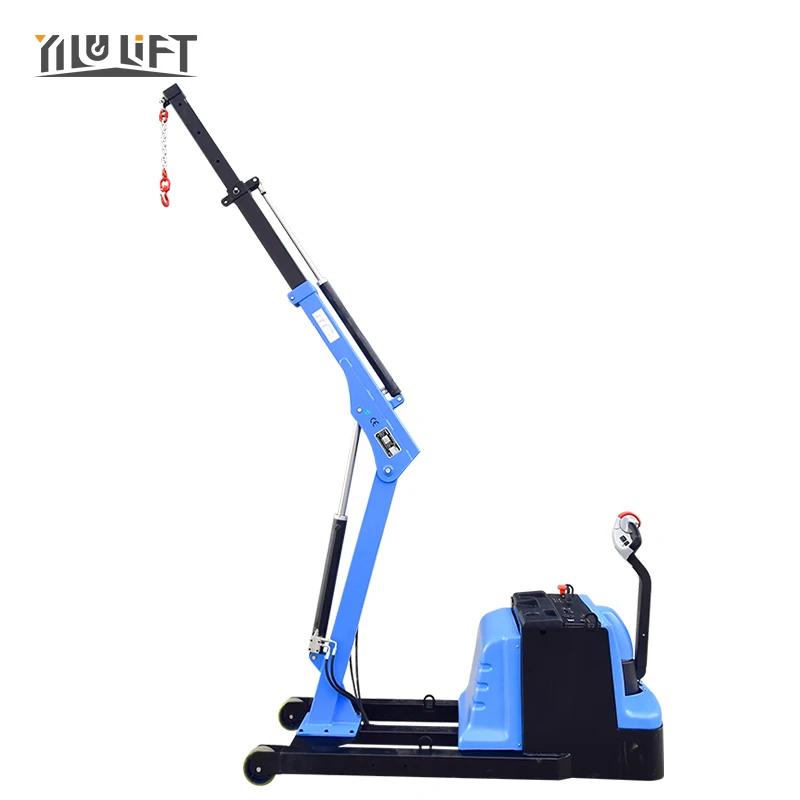

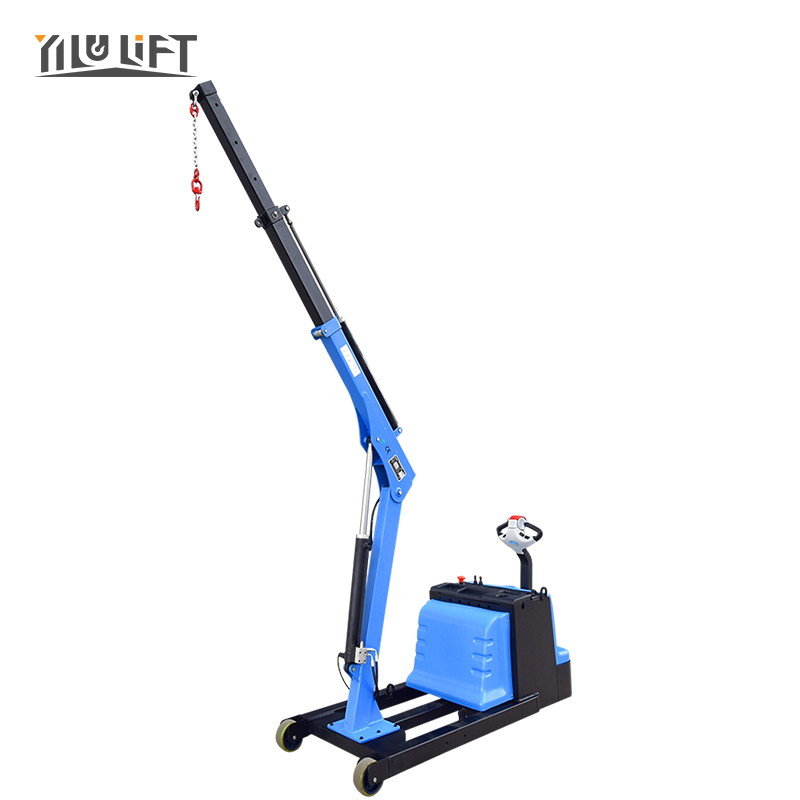

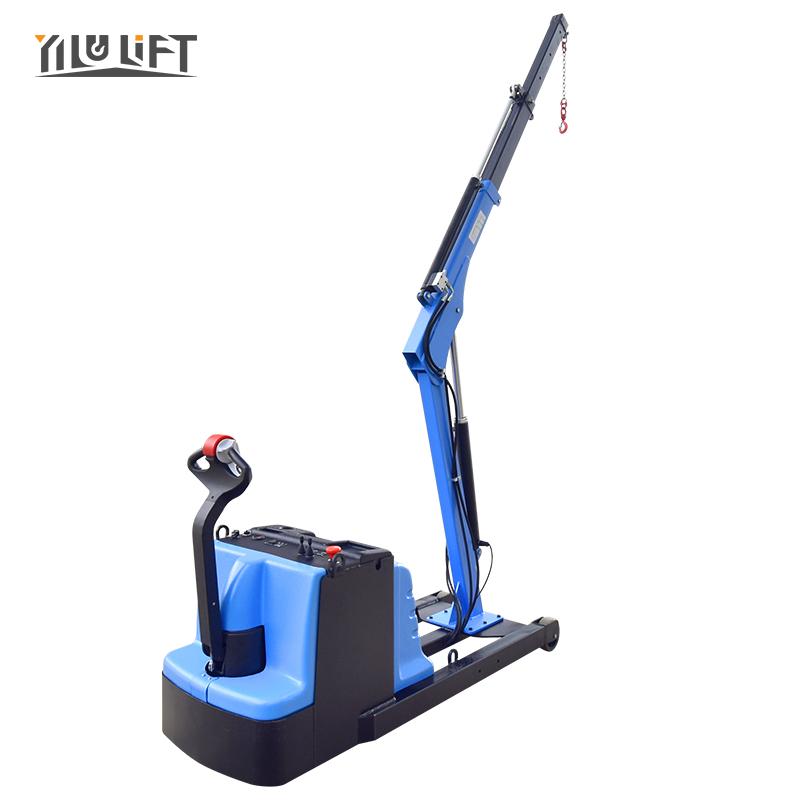

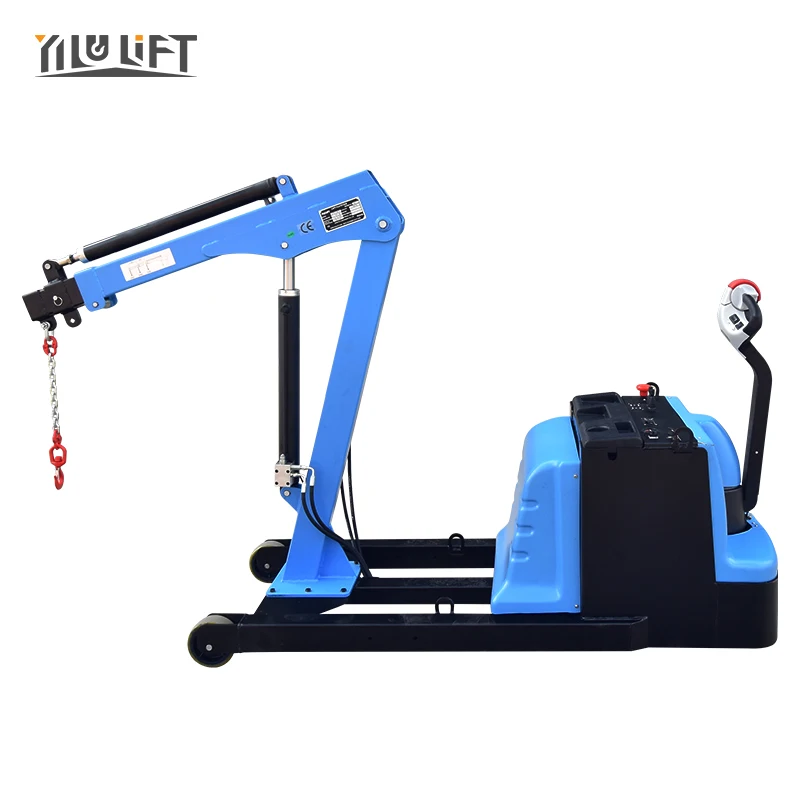

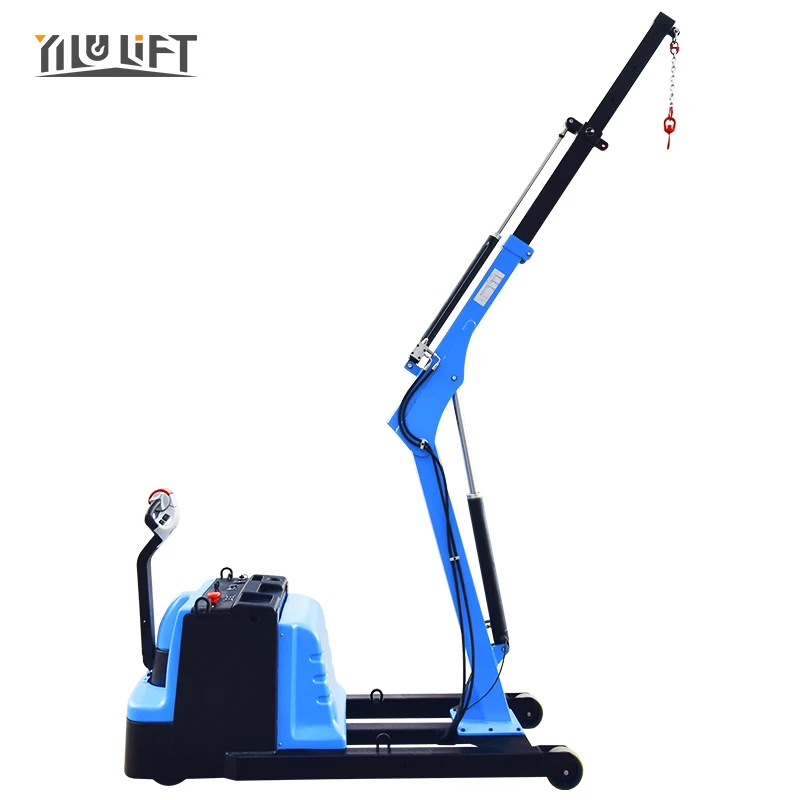

YILU Electric Floor Crane
YILU Electric mini floor crane is the latest additions to crane family. Engineered and built in China, we designed EP machines to be simple to operate but robust when working on tough jobsites. The EPFC series machines allow for transport of materials and boast valuable safety features such as automatic drive-wheel breaking on the front wheels and turnover prevention technology.
Because of their versatility, EPFC Series cranes can be found on glazing jobs, steel erection sites, and almost any general construction site.
- Product Peremeters
| Model Type | Horizontal Reach | Load Capacity | Load Capacity | Load Capacity | Max Lifting | Min Lifting |
Net weight |
| (Extended 2 stages) | (Stage 1) | (Stage 2) | Height | Height | |||
| EPFC-25 | 1280+610+610mm | 1200kg (1280mm) | 600kg | 300kg | 3570mm | 960mm | 500kg |
| EPFC-25-AA | 1280+610+610mm | 1200kg (1280mm) | 600kg | 300kg | 3540mm | 935mm | 480kg |
| EPFC-CB15 | 1220+610+610mm | 700kg (1220mm) | 400kg | 200kg | 3350mm | 1190mm | 770kg |
| EPFC-RS90 | 1280+610+610mm | 900kg (1280mm) | 450kg | 250kg | 3180mm | 1410mm | 900kg |

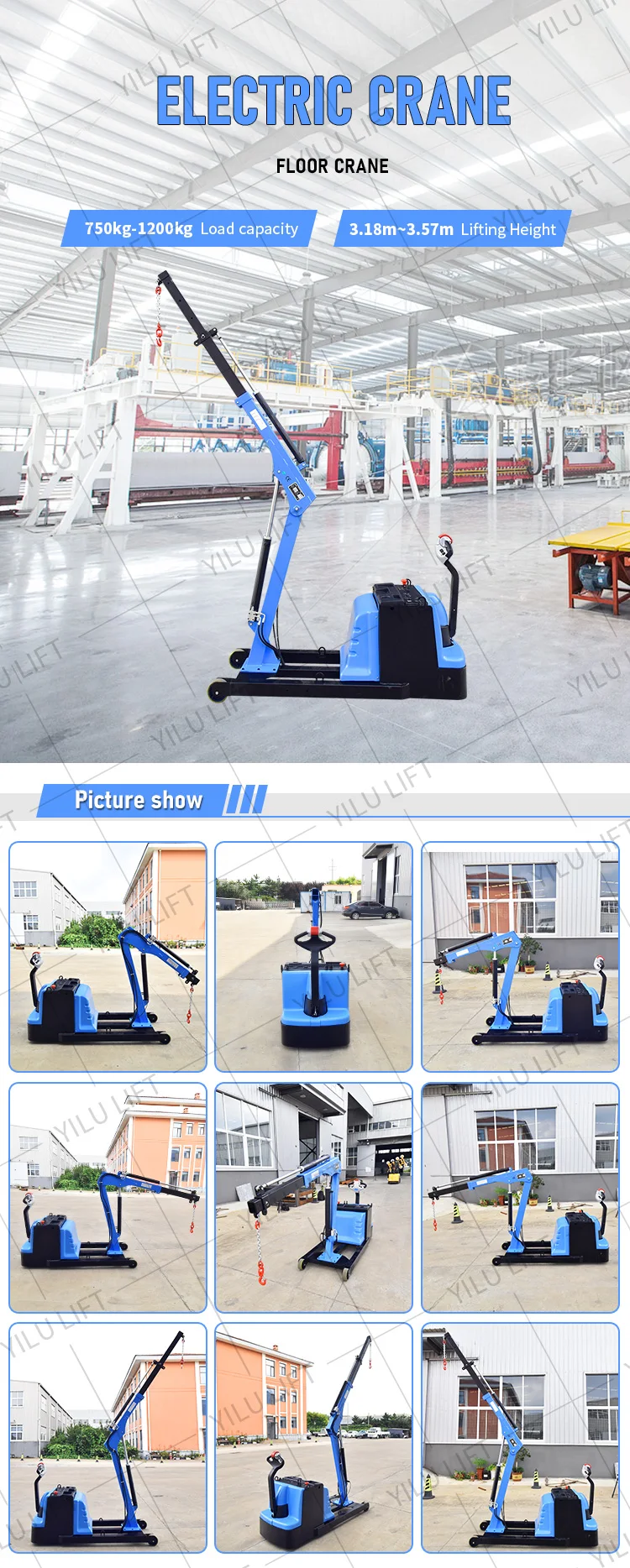

- Photos
- Features
1) Can be installed on pickups, trucks and other vehicles.
2) Many capacities available, 700kg, 900kg, 1200kg.(3570mm Max lifting height)
3) Telescopic design to reach further objects.
4) 120 degree left and right rotation.
5) Electromagnetic disc brake system.
6) Explosion-proof valves to prevent hydraulic hose rupture.
7) 24V DC drive and lift.
8) Ergonomic handle incorporates power throttle controlling stepless moving speed adjustment and once released, it makes truck crane stops.
9) 3-4 hours nonstop operation at full charge – 8 hours when used intermittently.
10) Equipped with two deep cycle 12V, 80 – 95/Ah lead acid batteries, integral battery charger, and battery level gauge.
11)Free Parts Offered for any malfunctioning part.
Mini electric cranes can travel through standard size single or double doors depending on the model. The YILU mini crane was thoughtfully designed with a low center of gravity to stabilize the mini crane when traveling and during crane operations. Due to this low center of gravity and increased stability, YILU mini electric cranes offer some of the narrowest mini cranes in their class.
- Our Team
Commitment is a big word, and not to be taken lightly. With YILU LIFT our first commitment is to offer high quality products. The second promise is innovation. We are constantly developing new models as part of the spider crane family to better serve our customers unique needs. If you have a lifting need, we have a solution.
FAQ
| 1: How to place an order? | |
| Answer: Please tell us your detailed requirements (including your product materials, product dimensions and product weight), and we will send you detailed parameters and quotations as soon as possible. | |
|
|
| Answer: It depends on your requirements of the equipment and shipment terms (FOB, CIF, CFR, EXW, etc.) | |
| 3: How to make the payment? | |
| Answer: We accept wire transfer; letter of credit; Alibaba trade guarantee. | |
| 4: What is the lead time? | |
| Answer: For the standard product, the delivery time is 7 days. For customized orders with no stock, we need to determine the delivery time according to the situation, usually it’s 20-30days. If you need urgent items, please contact us. | |
| 5: About the warranty | |
| Answer: Our machines enjoy a complete 1-year warranty. Lifelong technical support via email or video. | |
| 6: About the guarantee | |
| Alibaba will protect your order. We are Alibaba verified manufacture. We have Alibaba trade guarantee. | |
| 7: Mode of transportation | |
| Answer: You can choose sea, air, rail transportation. |
