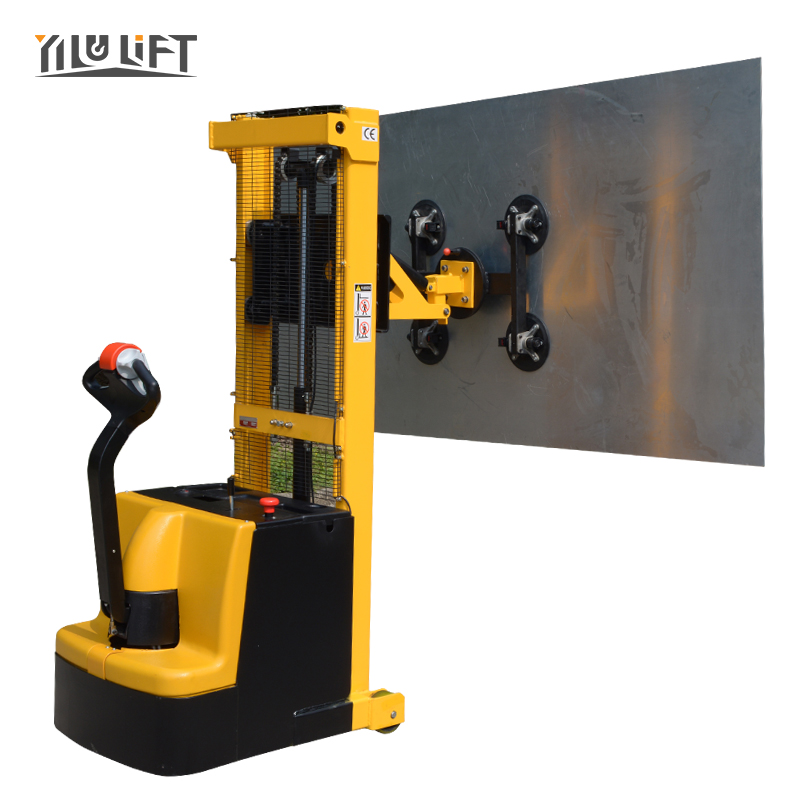

400-1000kg HD Series Vacuum Lift
HD Series Vacuum Lifter Robot Special designed for handling different kinds of heavy plate, board,glass, useful for installing steel board, glass wall, moving such as granite, marble. Easily handle lifting, moving and rotating with vacuum suction caps and powerful drive system.
HD Series Vacuum Lifter Robot Special designed for han
|
Model |
GL-HD-4016 |
GL-HD-6016 |
GL-HD-8016 |
GL-HD-1016 |
GL-HD-4025 |
GL-HD-6025 |
GL-HD-8025 |
GL-HD-1025 |
|
Type |
Standard Model |
|||||||
|
Max. Load Capacity |
400kg |
600kg |
800kg |
1000kg |
400kg |
600kg |
800kg |
1000kg |
|
Safe Load Capacity |
200kg |
300kg |
400kg |
500kg |
200kg |
300kg |
400kg |
500kg |
|
Lifting Height |
1600mm |
1600mm |
1600mm |
1600mm |
2500mm |
2500mm |
2500mm |
2500mm |
|
QTY of Caps (customized) |
4pcs |
4pcs |
6pcs |
6pcs |
4pcs |
4pcs |
6pcs |
6pcs |
|
Cap Diameter |
Ø300mm |
Ø300mm |
Ø300mm |
Ø300mm |
Ø300mm |
Ø300mm |
Ø300mm |
Ø300mm |
|
Plate Size (customized) |
1220x1830mm |
1220x1830mm |
1220x1830mm |
1220x1830mm |
1220x1830mm |
1220x1830mm |
1220x1830mm |
1220x1830mm |
|
Load Center |
650mm |
650mm |
650mm |
950mm |
650mm |
650mm |
650mm |
950mm |
|
Drive Motor |
24V/500W |
24V/500W |
24V/500W |
24V/700W |
24V/500W |
24V/500W |
24V/500W |
24V/700W |
|
Hydraulic Motor |
24V/2000W |
24V/2000W |
24V/2000W |
24V/2000W |
24V/2000W |
24V/2000W |
24V/2000W |
24V/2000W |
|
Battery |
2x12V/70Ah |
2x12V/70Ah |
2x12V/70Ah |
2x12V/100Ah |
2x12V/70Ah |
2x12V/70Ah |
2x12V/70Ah |
2x12V/100Ah |
|
Charger |
24V/10A |
24V/10A |
24V/10A |
24V/15A |
24V/10A |
24V/10A |
24V/10A |
24V/15A |
|
FOB Qingdao Port Price (USD/SET) |
$7,310 |
$7,690 |
$7,860 |
$8,020 |
$7,470 |
$7,860 |
$8,020 |
$8,190 |
