Load capacity( Arm Retract)
800kg

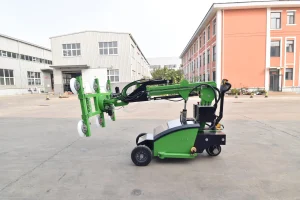

Mobile Glazing Robot Glass Vacuum Lifter Machine for Workshop
INTERESTED IN OUR PRODUCTS?
contact us
800kg Load Capacity Glass Lifter Robot for Widely Use
Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with vacuum suction caps.
Here are the main parameters.If the following parameters can not meet your needs, we can also customize according to your requirements.
- Product Parameters
| Model Type | GL-LD-300RT | GL-LD-400RT | GL-LD-500RT | GL-LD-600RT | GL-LD-800RT | |
| Load Capacity | 300kg (arm retract) | 400kg (retract) | 500kg (retract) | 600kg (retract) | 800kg (retract) | |
| 150kg (extend) | 200kg (extend) | 250kg (extend) | 300kg (extend) | 400kg (extend) | ||
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 5000mm | |
| Suction Cups | 4pcs,Ø300mm | 4pcs,Ø300mm | 6pcs,Ø300mm | 6pcs,Ø300mm | 8pcs,Ø300mm | |
| Deep Cycle Battery | 2x12V/80AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH | |
| Battery Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | |
| Drive Motor | 24V/1200W | 24V/600W | 24V/900W | 24V/900W | 24V/1200W | |
| Lifting Motor | 24V/2000W/5L | 24V/2000W/5L | 24V/2000W/5L | 24V/2000W/5L | 24V/2000W/12L | |
| Chassis L*W | 2660*810mm | 2660*810mm | 2800*810mm | 2800*810mm | 2800*810mm | |
| N.W/G.W | 1100/1150kg | 1280/1330kg | 1300/1350kg | 1400/1450kg | 1600/1650kg | |
| Packing Size | 2560x1030x1700mm | 2580x1050x1700mm | 300x1250x2300mm | |||
| Movement | Automatic (4kinds) | 1. Pad frame vertical up/down 180°automatic | ||||
| 2. Boom in/out 610/760mm automatic | ||||||
| 3. Powered arm lify up/down automatic | ||||||
| 4. Lateral side shift 100mm automatic | ||||||
| Manual (2kinds) | 5. Pad frame tilt left/right 90° manual (Pls look at Optional 1. automatic turn lift/right) | |||||
| 6. Pad frame rotation 360°manual (Pls look at Optional 2. automatic rotation 360°) | ||||||
| Optional(Extra charged) | Optional1>Need pad frame automatic tilt left/right 90° | |||||
| Optional2>Need pad frame automatic rotation 360° | ||||||
| Optional3>Need proportional valve remote control with lifting speed is adjustable | ||||||
| Optional4>Use maintenance free lead acid battery | ||||||
- Photos
- Advantages
1. An integrated control system ensures fast and automatic vertical and horizontal positioning at the touch of a button.
2. Reliable 24V DC drives for lifting, extending, and tilting. Efficient and precise. Self-propelled, with multiple vacuum suction circuits.
3. Attractive price, labor savings, and significantly improved working conditions.
4. Sagafirst vacuum lifts are shot-blasted and oven-baked for superior corrosion protection.
5. A high-quality pump unit ensures extremely stable lifting and lowering of the vacuum lift.
6. Robust cylinders with a drain system and non-return valve prevent the lifting platform from descending in the event of a hose rupture.
7. A safety valve prevents overloading; a flow control valve allows for adjusting the descent speed.
8. A simple design that considerably simplifies operation and maintenance.
9. Complies with the US standard ANSI/ASME and the European standard EN1570.
- Our Team
- Our services
1.We can design the customerized electric crane as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the electric crane break down to help you repair.
6.Parts of crane can be sent to you by express within 7 days if needed.
- FAQ
| 1: How to place an order? |
| Answer: Please tell us your detailed requirements (including your product materials, product dimensions and product weight), and we will send you detailed parameters and quotations as soon as possible. |
| 2: What is your price? |
| Answer: It depends on your requirements of the equipment and shipment terms (FOB, CIF, DDP) |
| 3: How should I pay? |
| Answer: We accept wire transfer; letter of credit; Alibaba trade guarantee. |
| 4: What is the delivery time? |
| Answer: For the standard product, the delivery time is 7 days.For customized orders with no stock, we need to determine the delivery time according to the situation, if you need urgent items, please contact us. |
| 5: About the warranty |
| Answer: 1-year warranty. Lifelong technical support via email or video. |
| 6: About the guarantee |
| Answer: Alibaba will protect the order. We have Alibaba trade assurance. |
| 7: Mode of transportation |
| Answer: You can choose sea, air, rail transportation. |
