Load Capacity
3t
High End 3ton Spider Engine Crane
INTERESTED IN OUR PRODUCTS?
contact us

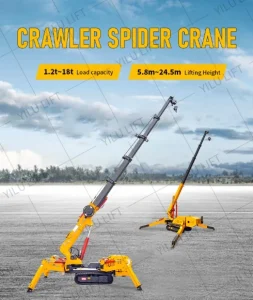

High End Crawler Spider Crane
Mini-crawler cranes are the latest must-have tool for the glazing, steel erection, and construction industries. YILU Spider cranes offer a compact design that allows for operation in confined areas. The smaller models can travel through a standard width door in their travel position, while other models can fit through a standard double door.
| Model | CL3.0 | |
| Specifications | 3ton | |
| Maximum operating radius | 10.5m | |
| Maximum Ground Lift | 10.8m | |
| Winch Device | Hook lifting speed | 0-8m/min(4 ropes) |
| Specification of steel rope | Φ8mm×45m | |
| Telescopic Device | Boom form | 2.4m×6-section |
| Boom length/time | 3.1m-9.2m/20sec | |
| Gyroscope | Rotation angle/speed | 0-360°(Continuous) |
| Running Gear | Walking mode | Hydraulic motor drive |
| Walking speed | 0-2.5km/h | |
| Gradeability | 25°(36%) | |
| Electrical Machinery | Voltage | AC380V(customize) |
| Engine | Manufacturer | Changchai |
| Start mode | Electric start | |
| Fuel/Volume | Diesel oil/40L | |
| Operating System | Operation type | Manual operation and walking |
| Standard Configuration | Diesel and AC | |
| Folding size | 3.5*0.8*1.85m | |
| Dead-weight | 2700kg | |
Features & Advantages:
1. The Crawler Spider Crane for moving loads quickly, easily, and safely.
2. Spider crane, suitable for occasions with limited space.
3. The spider crane is a full-slewing, boom-type, full-hydraulic transmission crane.
4. The main arm is 4-5 sections. The main arm section adopts a U-shaped structure. The single-st
age telescopic oil cylinder and the wire rope telescopic mechanism can realize the synchronous
expansion and contraction of the main arm.
5. The telescoping limit of the boom uses the double insurance of the marking line and the
alarm
